Your Fire TV is hiding diagnostic instruments that repair streaming issues you may’t clear up another means

Your Fire TV has some nice diagnostic instruments that you simply most likely did not find out about. They reply just about each query you’ve got about why your Fire TV is not working nicely. Being in a position to see developer settings and instruments is without doubt one of the features you really should already be using.

System X-Ray tells you what your {hardware} is doing

You can see how onerous your stick is working

To get to this menu, maintain the Select button and the Down button in your Fire TV distant on the similar time for about 4 seconds. Let go of each directly, then instantly hit the Menu button. The menu pops up on the left aspect of your display with all of your choices.

Once you unlock System X-Ray by way of the hidden Developer Tools Menu, it places a dwell diagnostic banner on the prime of your Fire TV display. It stays there whilst you undergo the launcher, browse menus, and even watch one thing. It exhibits Display, CPU, Memory, and Network.

Display exhibits your HDMI output decision peak in pixels and the refresh charge in fps. It additionally tells you which ones HDCP revision is pushing DRM encryption over the HDMI connection. The CPU exhibits a vertical bar for every bodily core on the chip. That means you may see precisely which cores are being hit onerous, which helps you discover out why one thing feels gradual or uneven.

Memory is a horizontal bar that breaks down how your RAM is getting used, measured by Proportional Set Size. Network retains tabs in your Wi-Fi sign, your total obtain velocity, and the way a lot of that bandwidth your present app is consuming up by itself.

Everything is color-coded, which is complicated at first. For your CPU, inexperienced is 0 to 33 %, orange is 34 to 66, and pink is 67 to 100. Green is nice and pink is dangerous.

On the reminiscence bar, blue is what the foreground app is utilizing. The grey represents reminiscence utilized by different purposes, and white is free reminiscence that is prepared for use straight away.

Network’s bar is lots just like the CPU’s, however for Wi-Fi high quality. Green means robust, orange is common, and pink is a warning.

You have to be sure to get actual encompass sound

Advanced audio choices present in case your sound is downmixed

When you are streaming encompass sound or spatial audio, you are inclined to assume your gear is getting the precise format the app claims to offer. Sometimes that is not true, and the app could be downmixing your audio.

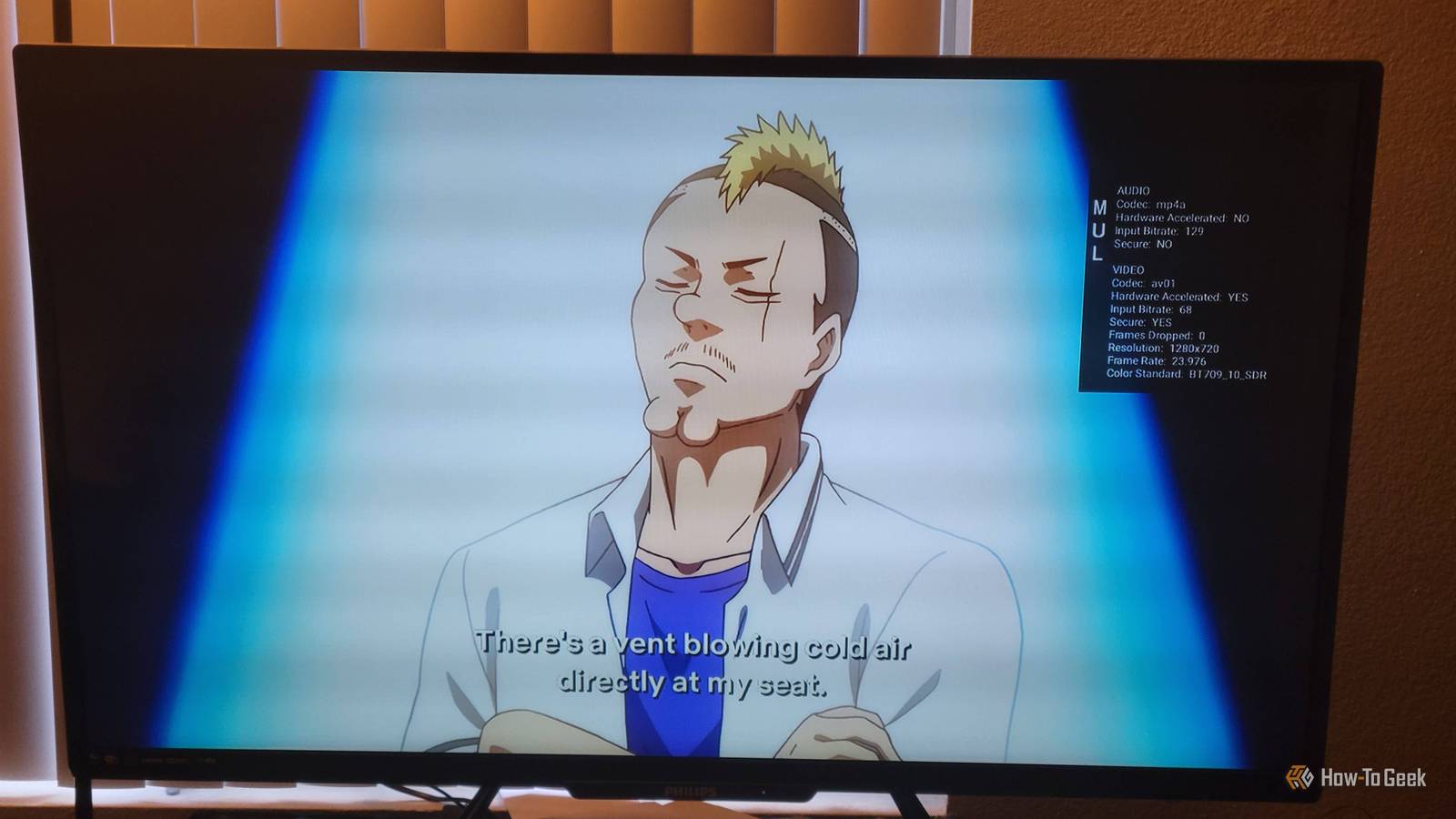

The method to truly see what is going on on is the Advanced Options within the Fire TV Developer Tools Menu. Turn that on, and also you get a Multimedia diagnostic overlay on the suitable aspect of the display every time media performs.

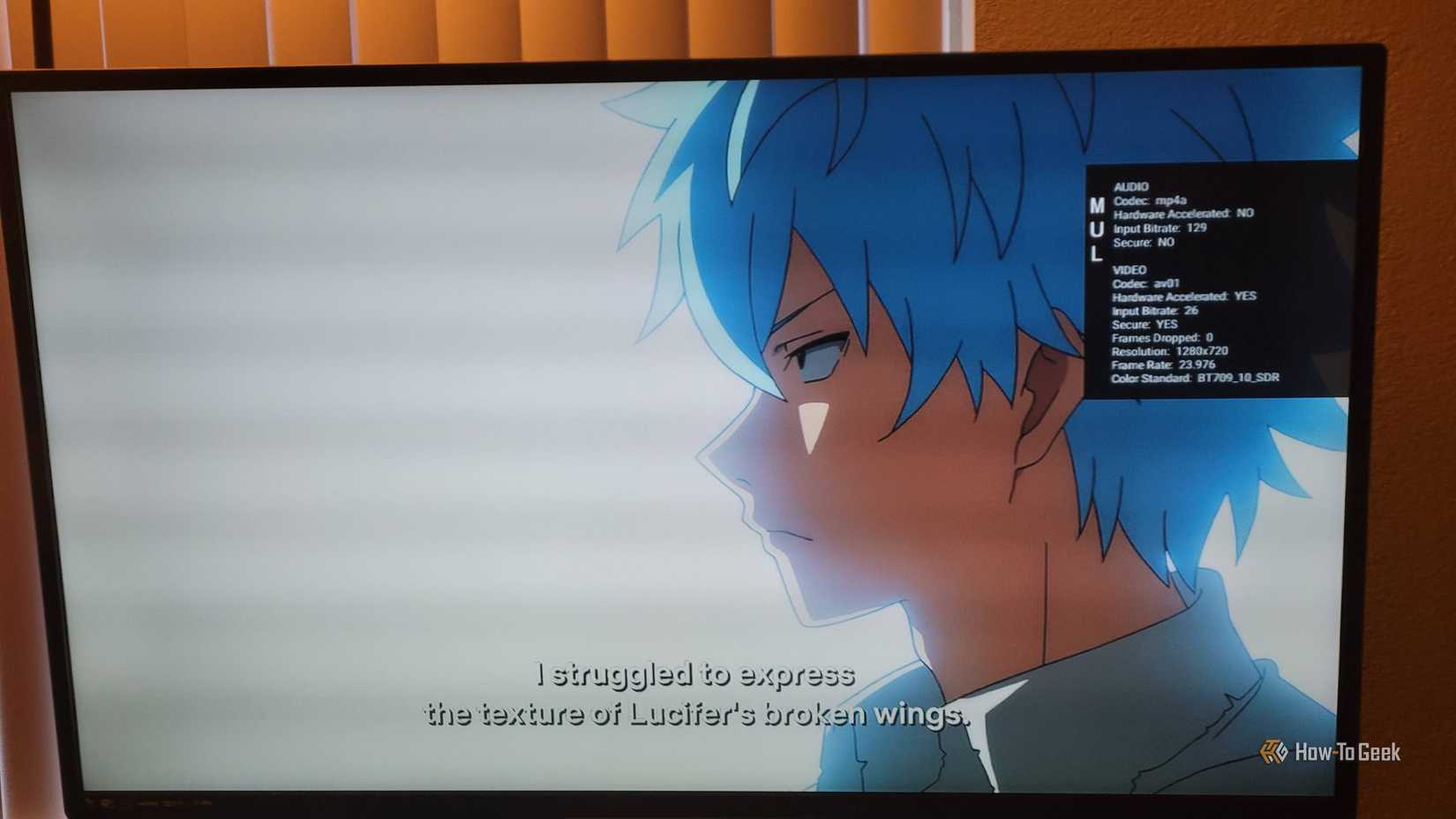

This overlay exhibits you reside {hardware} decoding stats. You’ll get the audio codec getting used, whether or not hardware-accelerated DSP decoding is energetic, the present enter bitrate in kilobits per second, and whether or not the stream is operating inside a DRM-protected safe atmosphere.

So whereas one thing’s taking part in, you simply look at that readout. It tells you straight away whether or not Dolby Atmos (‘eac3-joc’) or multi-channel Dolby Digital Plus (‘eac3’) is definitely being despatched as a uncooked bitstream, or whether or not it has been downmixed to plain 5.1 (‘ac3’) or 2-channel stereo PCM.

When passthrough is working proper for object-based spatial audio, the Multimedia overlay will present eac3-joc or uncooked bitstream knowledge. Your receiver’s display may also verify Atmos or Dolby Digital Plus by itself. If the Multimedia overlay is displaying stereo PCM or compressed AC3 whilst you’re taking part in an Atmos supply, the system is downmixing it. That means you are dropping the peak channels and the sense of the place sounds are coming from.

Your tv could be cropping the display

The safezone overlay helps you see the entire image

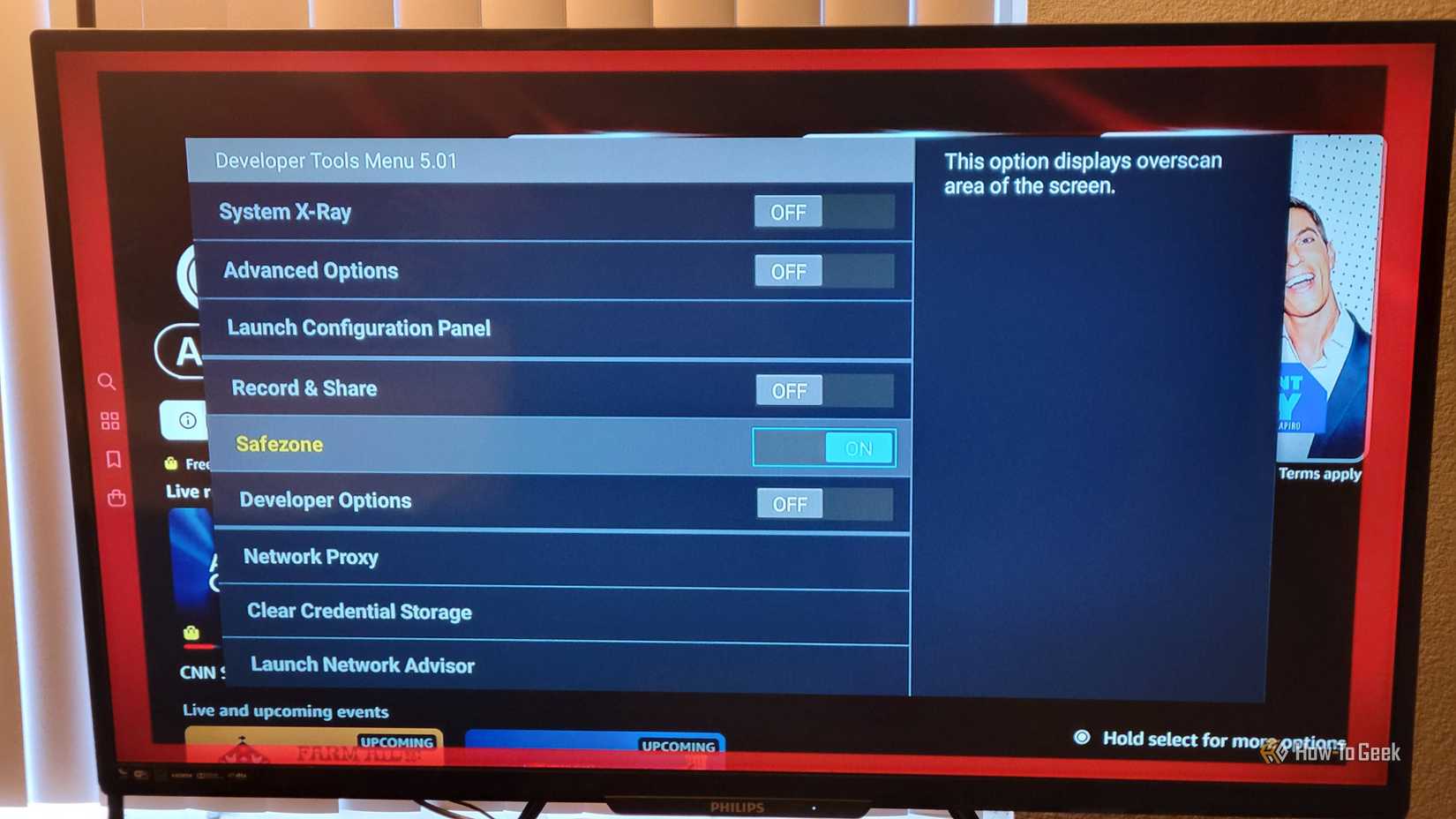

Flip on the Safezone toggle in Fire TV’s hidden Developer Tools Menu, and also you get a semi-transparent pink border with a grid across the edges of your display. It exhibits you the secure zone, which is principally the place UI components ought to sit if you need them seen on any TV.

Most streaming and Fire OS apps already keep inside these strains on their very own. The grid is especially helpful for checking whether or not your TV is definitely displaying the complete image or quietly chopping off the perimeters.

That clipping normally comes right down to overscan, which is a leftover from old CRT televisions. TV makers again then would zoom the image in a number of % on function to cover noise and junk knowledge alongside the perimeters of analog broadcasts. The downside is, loads of fashionable flat panels, particularly older ones or ones no one ever reconfigured, nonetheless have that characteristic turned on by default for HDMI inputs.

So your Fire TV sends a full sign, and the TV crops it earlier than you ever see it. It will get actually annoying with sideloaded Android apps. Regular Android apps are constructed for telephones and tablets the place you may contact the very fringe of the display, so that they shove buttons, search bars, and nav menus proper up in opposition to the borders.

To repair it, go to Settings, then Display & Sounds, and decide Display. From there, you may go to Calibrate Display after which nudge the perimeters till all the things strains up with the bodily body. Once the pink Safezone grid sits proper on the fringe of your display with out spilling off, flip Safezone again off, and also you’re completed.

Network Advisor and Audio Focus type out connection drops

Fix bizarre sound points and gradual streaming speeds

Hardware metrics and display calibration solely cowl what’s occurring in your finish. Streaming issues are completely different as a result of they present up as community slowdowns you may’t see or audio that randomly cuts out.

Network Advisor is hidden within the Developer Tools Menu and works like a greater connection check. It checks your Wi-Fi sign power, noise stage, channel utilization, and signal-to-noise ratio, and features a velocity check. Once it figures out the issue, it offers you easy suggestions to repair it.

Audio Focus covers the opposite half. If a video performs with no sound or the amount acts bizarre, that is the place you may discover out why. It exhibits you in actual time which app has management of the audio and the way that app is behaving.

After you determine the difficulty, simply go to your Settings, then Applications, and eventually, Manage Installed Applications. You can decide the app and press Force Stop. It’s like a restart, which ought to repair the difficulty.

Don’t deal with these like they’re toys

None of those instruments are meant for each day use, and leaving overlays operating throughout regular watching can get annoying. All it’s a must to do is run them as soon as to verify issues are working the best way you anticipate, then flip them off. If you paid for a very good receiver and a 4K TV, take ten minutes to verify your Fire TV is sending them what they will deal with.
