Your “125W” Intel CPU can formally use greater than twice that

Modern PCs are power-hungry machines. High-end GPUs just like the RTX 5080 alone have a TGP (complete graphics energy) of 360W, elevating the minimal requirement for PSUs in high-end techniques to a minimal of 850W, as Nvidia advises. However, these GPUs aren’t the one power-hungry parts in your system. For the CPU, it looks as if it might barely sip energy, however that is not true for newer processors.

Looking at a CPU spec sheet, TDP alone doesn’t inform the entire story as a result of, in actuality, the processor may even draw twice that energy throughout peak exercise. So, in case you’re planning a brand new construct quickly, keep watch over the CPU’s Maximum Turbo Power draw, which could be a lot greater than TDP, and keep away from making the flawed buy selections for the remainder of your parts.

TDP describes sustained load, not peak draw

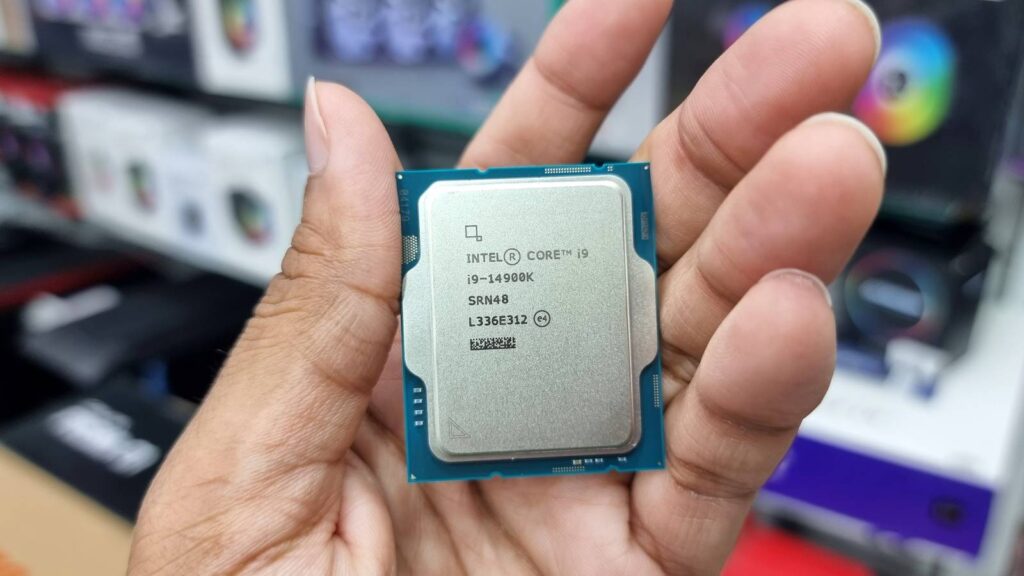

The Core i9-14900K is rated at 125W however is specified to drag 253W

A CPU has totally different energy states it might function in. For Intel CPUs, TDP is the bottom energy that the processor consumes below a sustained workload, additionally known as Processor Base Power (PL1). However, clocks can generally rise, and the CPU will increase below heavy workloads, reaching increase clocks and drawing much more energy, known as Maximum Turbo Power, or PL2.

At greater speeds, although, the facility draw will increase considerably as a result of greater clock speeds want extra voltage. For occasion, Intel’s Core i9 14900K has a PL1 of 125W, however at PL2 the spec sheet lists a whopping 253W draw, despite the fact that it is time-limited.

PL1 is labeled as TDP, so consumers confuse it with the utmost energy draw. However, TDP applies solely to PL1, so that you should not base a PC construct solely on it, as a result of a CPU can draw twice as a lot energy below PL2.

AMD makes use of totally different naming conventions. TDP is the equal of Intel’s PL1, whereas PPT (Package Power Tracking) is the PL2 equal; on AM5, PPT attracts about 1.35x TDP, which is way lower than Intel’s.

How PL2 and Tau set the increase restrict

Motherboard firmware can stretch each nicely previous the producer’s defaults

By default, a CPU runs below the PL1 restrict except it wants extra efficiency, by which case PL2 kicks in.

However, these increase speeds do not final lengthy as a result of, at a better energy, the processor turns into hotter, and that is when Tau drops as a result of thermal throttling becomes a concern; in any other case, it is a phenomenon the place efficiency begins to deteriorate because the CPU robotically slows itself down to stop everlasting harm.

PL2 depends upon the CPU’s Tau, a time window meant to achieve the upper energy draw, calculated in seconds earlier than it drops again to PL1. The attention-grabbing half is that PL2 can range throughout motherboards due to firmware limits, even when the producer specifies totally different values.

For occasion, a motherboard producer could prolong the Tau window to squeeze extra efficiency out of the CPU for advertising functions.

What this implies to your subsequent PC buy

Size your PSU, cooler, and board for PL2

The most essential a part of constructing a PC is choosing the right PSU, and in case you plan on upgrading or shopping for a brand new PC anytime quickly, I like to recommend getting a PSU with an satisfactory provide, retaining the CPU and GPU’s peak attracts in thoughts, so the PC would not develop into unstable or harm the parts if it fails to offer the required energy.

The PSU should not be the one concern, although. Cooling performs an equal half in guaranteeing your PC performs effectively. A price range cooler will not minimize it for a high-end CPU requiring a PL2 energy draw of 253W just like the Core i9 14900K.

You will most likely should get a cooler (ideally AIO) rated for 250W or extra, not the PL1 restrict. With inadequate cooling, the CPU will possible thermal throttle, failing to offer the marketed efficiency.

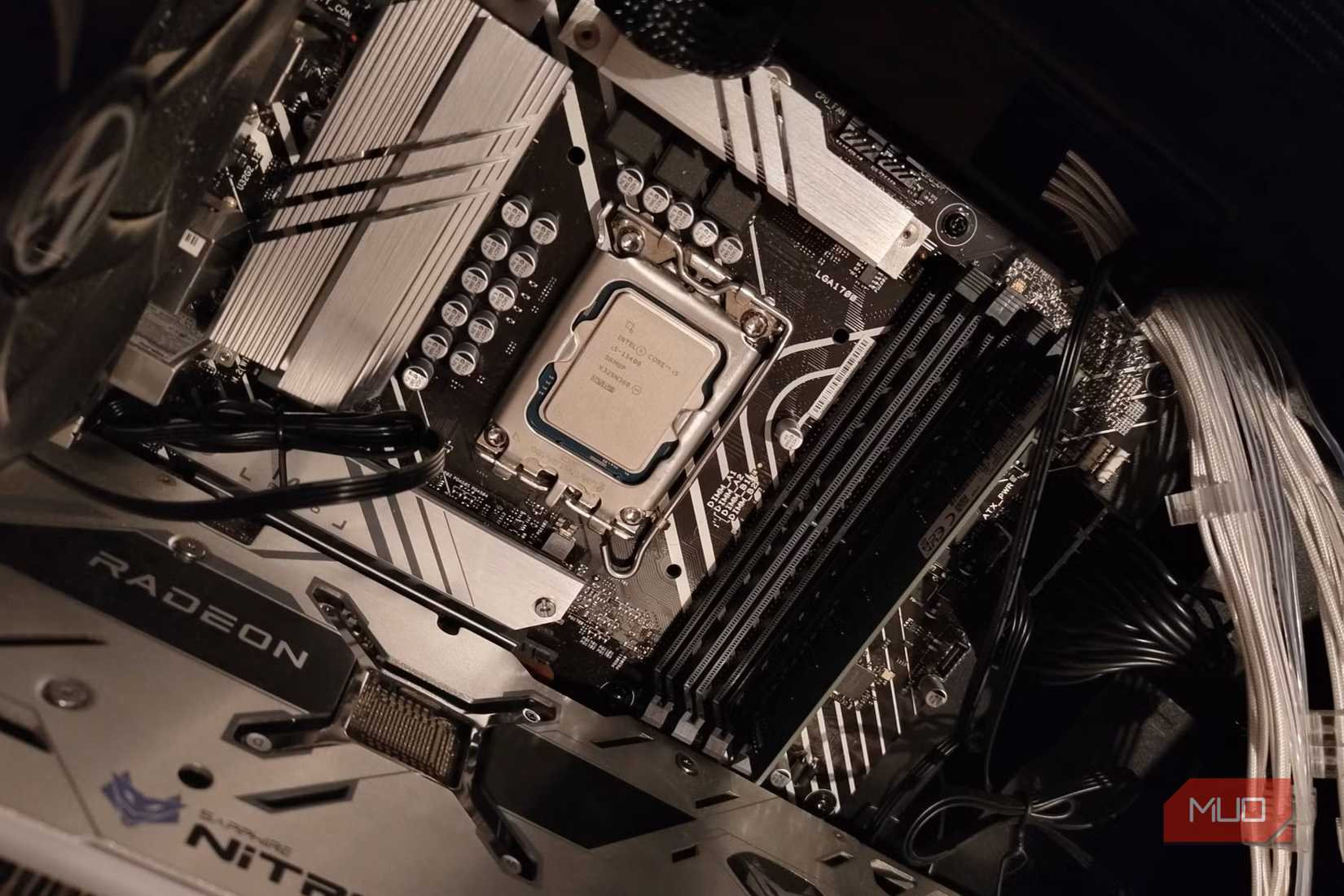

Motherboards additionally matter simply as a lot because the PSU and cooling. Cheaper boards often have fewer heatsinks and weaker VRMs to make up for the diminished prices.

Pairing a weak board with a high-end CPU can decrease efficiency if the motherboard struggles to maintain temperatures down as a result of weaker VRMs throttle the processor. Check the VRMs and heatsink design of any motherboard earlier than deciding to pair it with a Okay-series chip.

Plan your subsequent construct round peak energy

Accounting for the GPU, CPU, RAM, and different parts and the RGB followers in your PC, even a mid-end PC construct requires round 750–800W of energy. For any PC buy, depart a headroom of at the least 20–30% extra watts than the mixed peak, even after accounting for the best energy your PC can devour.

The purpose is that PSUs don’t perform at their peak all the time, and a few of the energy is misplaced throughout the conversion of AC to DC as warmth. An undersized PSU with no headroom would not have the ability to maintain regular voltages after some time, by which case the system could begin to crash and randomly shut down at peak consumption.
