Upgrading A Benchtop Laser For Megawatt Energy
One fascinating factor a couple of pulsed laser is that, although the common energy could also be measured in watts or milliwatts, the height energy can simply attain hundreds of thousands of occasions that. This occurs even in regular operation, however as [Les’ Lab] demonstrated, including a Q-Switch can significantly improve the height energy.

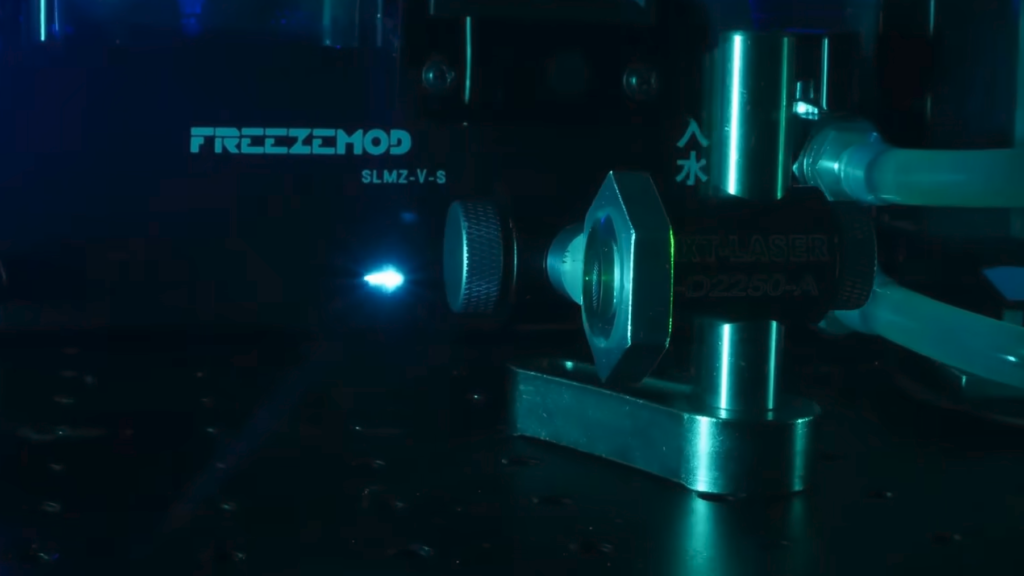

A Q-switch is an optical attenuator; when positioned within the laser cavity, it retains the cavity from reaching resonance. This significantly limits stimulated emission, permitting vitality to construct up within the chamber because the acquire medium turns into more and more saturated. Eventually, at some vitality stage, the Q-switch all of the sudden stops blocking mild, and the cavity lases in a really brief, highly effective pulse. The Q-switch doesn’t improve the vitality in a laser shot, however it does launch it far more rapidly. In this case, [Les] used chromium-doped yttrium aluminum garnet crystals because the Q-switch and in contrast efficiency throughout a number of completely different crystals.
[Les] used two sensors to measure the laser pulse: a pyroelectric vitality sensor and a quick photodiode to measure the heartbeat’s form. Without the Q-switch, [Les]’s laser produced a pulse about 150 µs lengthy, with a complete vitality of about 137 mJ and a peak energy slightly below one kilowatt. After including a Q-switch, the heartbeat dropped to 14 ns, and the height energy rose to 1.3 megawatts, although the full vitality dropped to 77 mJ. [Les] additionally constructed an absorption meter and used this to match a number of Q-switches with completely different absorptions; typically, higher absorption elevated the height energy when the laser did fireplace, reaching 2.25 MW at 92% absorption. Increased peak energy didn’t translate into higher reducing energy, although; when aiming at a steel goal, the heartbeat was too brief to do far more than ablate the steel’s floor. The vitality output was, nonetheless, sufficient to ionize air or shatter glass on the laser’s point of interest.
This isn’t the one enhancement [Les] made to his former tattoo-removal laser; this builds on a earlier improve to the gain medium itself. For extra background on why Q-switches work, take a look at our article on laser fundamentals.
