Two-Element H-shifter For Racing Sims

Flying and driving simulators can go so far as cash will take you, and in some unspecified time in the future it would find yourself being cheaper to purchase a aircraft or race automobile than to maintain including capabilities to among the sim rigs we’ve seen. But it will also be a reasonably inexpensive interest as properly, with entry-level elements being inside attain for a lot of. The value can drop precipitously from there too, offered some elements will be sourced and a 3D printer is made obtainable, and [Jason] is demonstrating one of the lowest-cost H-shifters we’ve seen which only uses two parts at its core.

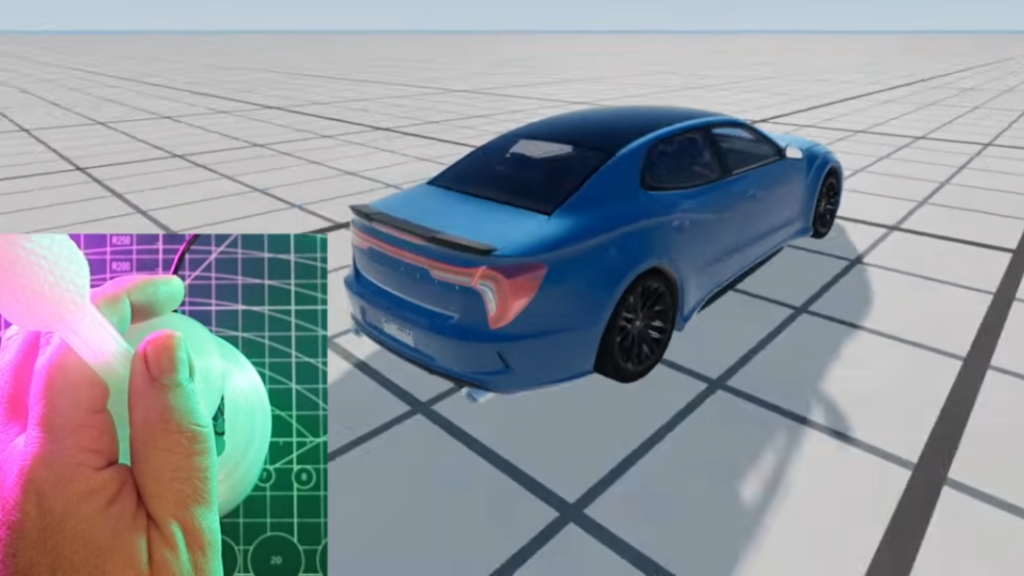

The two elements solely cowl the electronics for the construct, however this will get virtually the whole lot wanted for the shifter squared away. A joystick like these discovered inside many recreation controllers is paired with an Arduino Pro Micro, with a really easy wiring configuration between them. These elements are paired with a prototype 3D printed case and shift knob which offers the H sample of selection. From there it’s so simple as importing some readily-available firmware, which [Jason] additionally demonstrates, and which has many choices for varied configurations of shifters.

Although this was only a prototype, it exhibits was only a few off-the-shelf elements and a 3D printer can present to an inexpensive driving sim setup. Even then a 3D printer shouldn’t be all the time crucial, like this three-pedal setup using extruded aluminum frame as a base. From there, all types of different options will be added like force feedback on the steering wheel.
