TV Audio Tube Makes A Transceiver

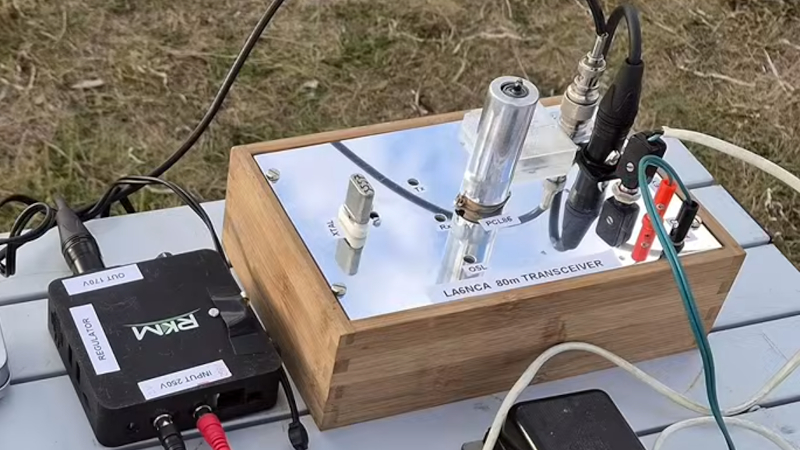

It’s not usually we see a tube challenge right here, so [Helge Fykse]’s PCL86 transceiver is a welcome discover.
If you realize something in regards to the European Pro-Electron system naming system you’ll be conversant in it because it applies to tubes. The first letter denotes the heater specification, for instance “E” is for a 6.3 volt heater. Everyone needs the acquainted 6.3 V gadgets, however they’ve a set of cousins which regularly cross unnoticed. “P” tubes have a 300 mA heater designed such that every one tubes in a tool may very well be related in sequence on the similar present. Of these tubes the PCL86 is a secular instance, filling the operate taken within the semiconductor years by the LM386. It’s a small-signal triode and an influence pentode in a single system, and it’s an audio amplifier. Every Nineteen Sixties TV set in Europe had one, and thus it’s a good selection for experimentation.
This transceiver is a traditional crystal oscillator and energy amplifier on transmit, however with a flick of a swap it transforms right into a direct conversion receiver by which the triode turns into oscillator and mixer whereas the pentode turns into an audio amplifier. It’s easy, and the video under the break explains it in nice element. We’re unsure whether or not or not it may unintentionally radiate in obtain mode, however we’re guessing the vitality could be tiny.
A easy tube challenge could make an attention-grabbing departure from trendy floor mount electronics, so in the event you get the possibility we’d counsel you strive one. If you don’t want a transceiver, an audio amplifier is the archetypal PCL86 project.
