Tearing Down A Heavy Oscilloscope

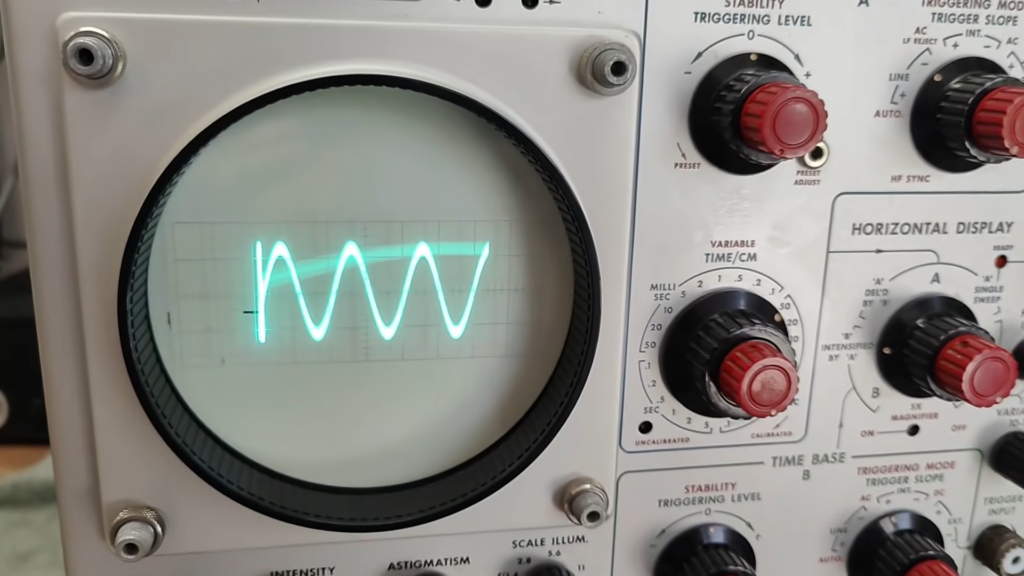

When [Thomas] confirmed his Nineteen Sixties-era Tektronix 545A oscilloscope in a latest video, it made us each nostalgic and joyful. Nostalgic as a result of we miss the times when our oscilloscopes have been “mainframes” that might take plug-in modules. Happy as a result of we seen the 2 handles on prime to handle hauling the just about 70 kilos of tubes, transformers, and glass round in case you didn’t have the requisite cart.
Not solely did previous scopes have plugins so you can reconfigure them, however there have been additionally useful plugins and racks that might energy them so you can construct completely different check setups simply. This scope was an early model of that concept, nevertheless it solely accepted a vertical part plugin. The mainframe a part of the scope has 75 tubes, and the plugin, a sort D, has six tubes, too. The energy consumption was about 500 watts!
If you’ve used a scope like this earlier than, you’ll most likely bear in mind a number of the eccentricities talked about within the video. If not, you’ll acquire a brand new appreciation on your modern, sophisticated, and lightweight scope. Of course, the previous boat anchor wasn’t working. Apparently, these scopes had ceramic factors that didn’t like common solder, so there was a spool of silver solder contained in the unit for repairs.
[Thomas] made a number of progress, though it nonetheless wants work to get it working completely. We have little doubt he’ll get it working in time. Even the graticule on these previous scopes was an issue.
