Reviving The PoE++ Function On A Ubiquiti Change
Recently [The Parallel Port] was requested to check out repairing the PoE++ feature on a Ubiquiti change that in any other case labored advantageous. This is a pretty nice 24-port rackmounted change with 2.5 Gbit-capable RJ-45 ports and two 10 Gbit SFP+ ports, so by itself it’s fairly helpful, however having the 400 Watt PoE characteristic simply go AWOL nonetheless stings, particularly for those who purchased it new for $800.
With energy utilized the change begins up as regular, together with its 1.3″ contact display screen that gives direct port info in addition to a elaborate screensaver cum QR code for the AR characteristic.
After logging into the change’s BusyBox console it confirmed that every one ports reported dangerous for the PwrGood standing, and there have been PoE energy standing request errors within the log, however this could possibly be simply the consequence of one thing else. Using a PoE splitter it was confirmed that the PoE performance was certainly useless.
After disassembly and a few testing with a multimeter and thermal digicam, a brief and associated scorching spot on the PCB that the PoE energy board connects to was recognized, with the quick persisting after eradicating this PCB from the change. Since the change had suffered a little bit of {an electrical} occasion the TVS diode was checked, however it turned out to be advantageous.

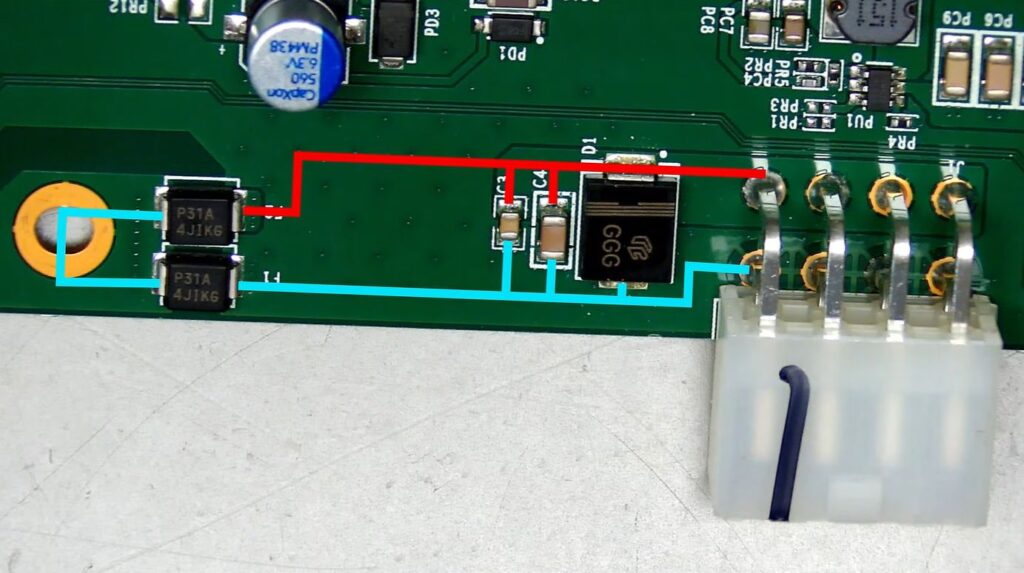

Next to it, marked as fuses, had been protecting thyristor surge safety units (Trisil), functioning as a crowbar system. These aren’t speculated to be shorted to floor till a surge occasion happens, however these had been certainly each shorted when measured instantly. Clearly that they had taken the brunt of {the electrical} occasion and sacrificed themselves within the course of.
One alternative later of those units the change now fortunately studies a superb PoE standing and even was in a position to energy a DC fan through the PoE splitter. Even if it wasn’t a very exhausting repair, that is positively a kind of instances the place realizing how the protecting circuit works can save quite a lot of time in diagnosing and fixing a fault.
