Printing A Clock Match For A Pope

When it involves clockwork, there’s a spectrum — some individuals love the ticking, and a few individuals hate it, whereas most fall into the broad center of indifference. Once upon a time, Pope Alexander VII fell into the “hate it” class, and commissioned a silent timepiece from [Fratelli Campani] in 1656. Three hundred seventy years later, [Many Vices] sought out to re-create the mechanism in extruded plastic because of the efforts of watchmaker [Carlo G. Croce], who documented his brass recreation in this PDF file and his own videos.

While the archaeology of recreating the mechanism from previous pictures is fascinating, the mechanism itself is the actual showpiece. The secret, as you may have the ability to inform from the pictures, is an eccentric crank escapement that gives steady motion moderately than the normal anchor escapement whose periodic actions creates the distinctive ‘tick’ and ‘tock’. [Many] checks each in his video so you’ll be able to hear the distinction and see how a lot energy is wasted with the crank escapement, which doesn’t preserve going very lengthy.

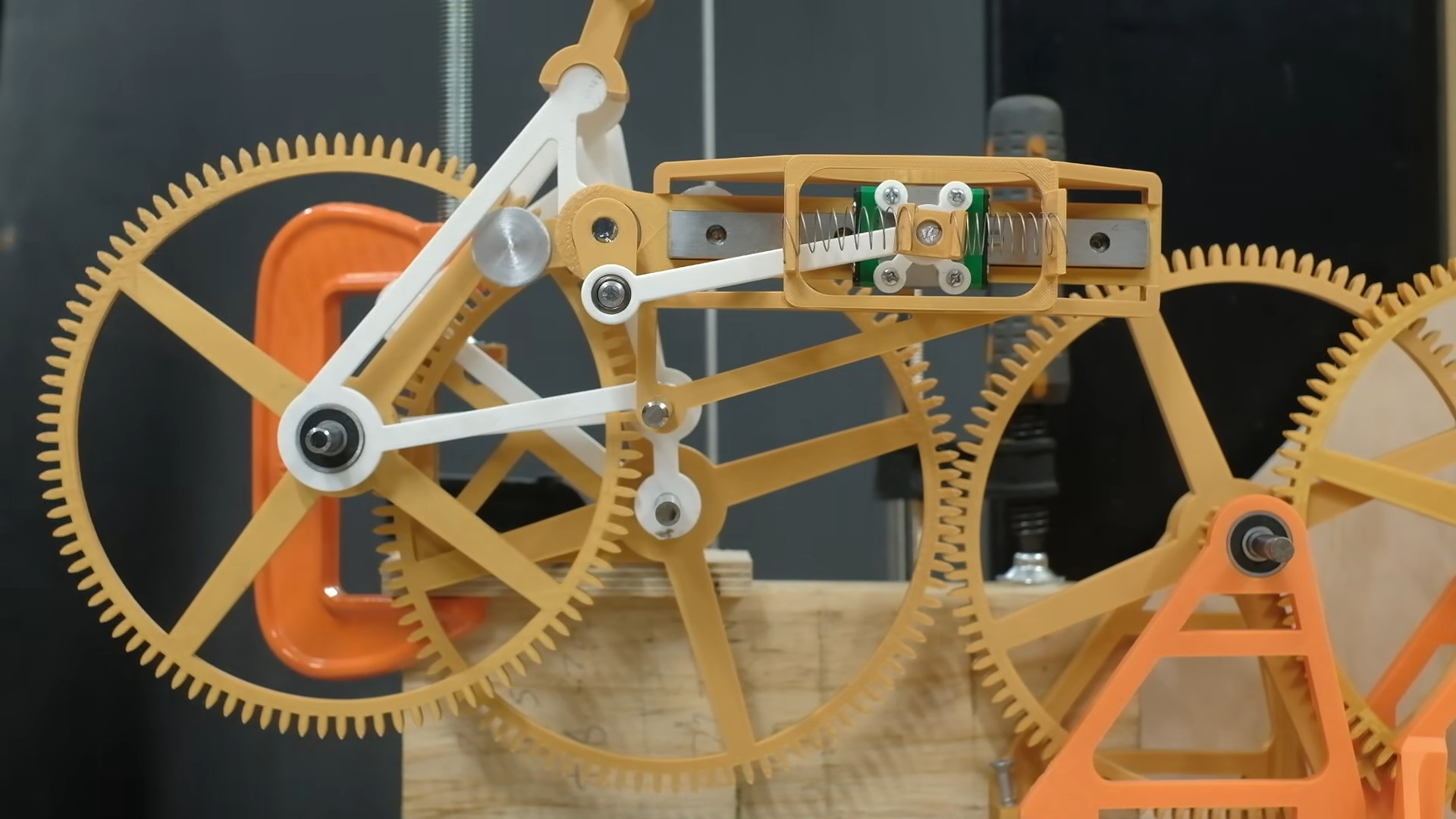

We marvel if fastidiously tuning the flywheel he’s utilizing to match the frequency of the swinging pendulum would assist slightly there. Likewise, his linear-rail-based spring pendulum modification — although it does look superior and we’d love a train-themed clock utilizing it — doesn’t come near offering the runtime of conventional clockwork. That’s most likely why the anchor escapement persevered for hundreds of years, even when some individuals and Popes couldn’t stand the tick-tock.

We’ve featured plenty of completely different 3D printed clocks, from wholly mechanical to electromechanical digital items to even ones based on D20s , so it’s exhausting to consider that not much more than a decade back, printing a mechanical clock was thought of a problem. Time marches on whether or not we will hear it or not.
