Creating A Custom Hinge For A Motorbike’s Fuel Access Panel

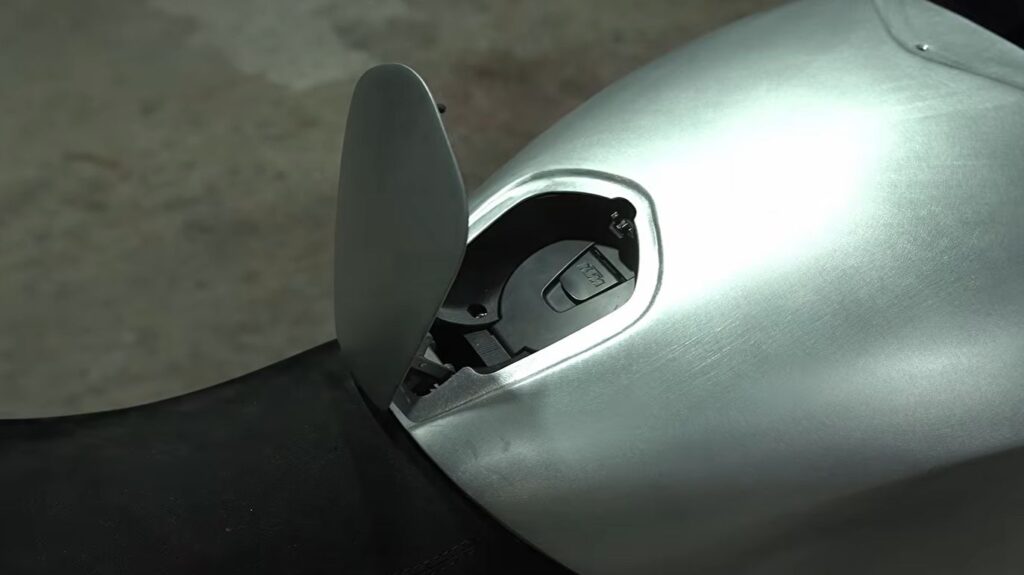

An enjoyable part of customizing something like a motorcycle is that you in some cases need to develop imaginative services to fundamental concerns, like how you can still access the fuel tank’s cap after extending it forward. In the case of [KRTframework] this suggested that the fuel cap was now below the bodywork, needing an appropriate method to gain access to it. Of course, this suggested making a hidden access panel with a custom hinge, to not break the bike’s tidy lines.

To make the procedure as simple as possible, a 3D scanner was utilized to get comprehensive measurements on what the brand-new bodywork would appear like. Using these the brand-new bodywork was produced, including what would be the concealed gain access to panel, yet discovering an appropriate hinge system wasn’t simple. This is where this customized style was produced, with comprehensive assembly covered in the video.

To bridge the space in between the opening and the fuel tank a part was 3D-printed that likewise consists of the easy push-to-open lock system. Of course, in the remark area individuals sounded off on this, feeling that it would be far too simple to mistakenly open the panel.

The hinge appears to be favored a minimum of, with it needing to fit within the offered area, while likewise supplying great access to the fuel cap when opened, indicating rather a great deal of travel.
