Preserve That Outdated Radio Alive With An ESP32

As the legacy AM broadcast bands fade away, what occurs to the hundreds of thousands of units constructed to obtain them? Many of them will go into e-waste, however with a century of radios to select from, a few of them are collector’s objects. Vintage tube radios like those [GarethDaviesLondon] has would go silent, so he’s made a small AM transmitter to maintain them alive.

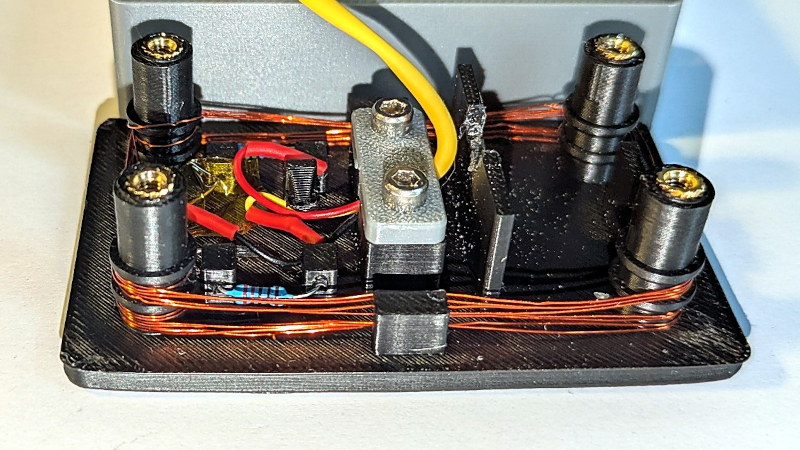

At its coronary heart is an ESP32-S3, which takes a web-based radio stream and transmits it by way of RF generated with a pulse chain on a GPIO. Generating analogue indicators from radio to video with a microcontroller is nothing new, however maybe the extra attention-grabbing a part of this one is available in how he radiates sufficient from that pin. There’s a 3D printed field with stand-offs designed to take a extensively spaced wire coil, which is sufficient for the classic electronics to choose up. He makes the purpose that it will not be authorized, however at that energy we doubt anybody will discover.

The output on this one is 200kHz for the European lengthy wave band, however we’re guessing the next medium wave frequency is also generated. Meanwhile if you’re interested in AM, we’ve featured someone having a closer look at it.
