In Reward Of A Legendary Energy Transistor

There are some units which obtain digital immortality, it’s probably that you’ve used a couple of of them your self. The 555 timer after all, or the 741 op-amp. [ElectronicsNotes] is here with another candidate that may not have been in your thoughts as you learn the earlier sentences, and it’s a transistor. The 2N3055 is an NPN energy transistor, no, THE NPN energy transistor, that has discovered its means into an astounding array of units during the last six a long time or extra.

For such a ubiquitous machine one may think that there’s not a lot new to know, however the video delivers on that entrance. Here in addition to most likely for you the 3055 has at all times been an epitaxial machine whose quirks you probably know properly, however initially it was one thing totally different. It used the hometaxial building course of on its launch within the early Sixties, however within the mid Seventies it was changed by a model with the identical capabilities however utilizing the epitaxial course of. The consequent larger Ft required modifications to circuits utilizing the machine to cease undesirable oscillation.

Where that is being written there are a number of 2N3055s, within the by now somewhat previous workplace audio amplifier, in a bench energy provide, and possibly elsewhere too. It’s been outdated in some ways and its TO3 case now feels antiquated, however it’ll most likely by no means completely go away. Meanwhile when you’d prefer to examine one other iconic Sixties machine that by no means went away, we have you covered.

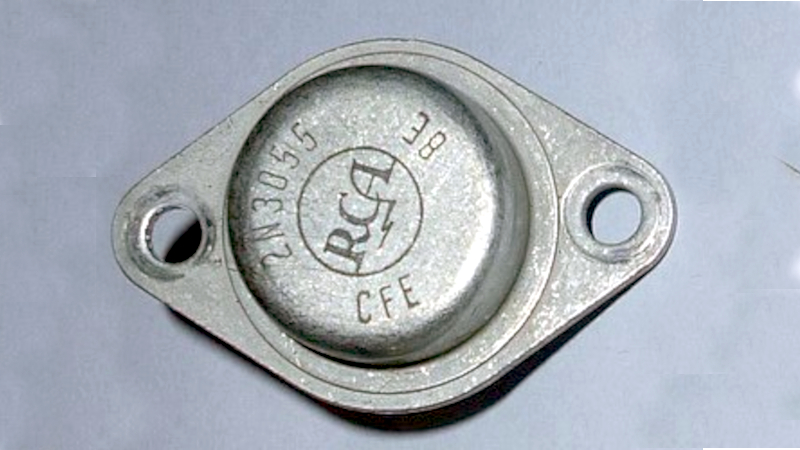

Header: a very early instance. Eule4404, CC BY-SA 4.0
