Getting To Know The TP223 Capacitive Contact Sensor

Mechanical and vulnerable to failure, switches can appear quaint as of late. Plus, everyone seems to be used to having contact screens on their telephones and different units. So why not use contact sensors in your subsequent challenge? [Tarantula3] has particulars on using the TP223 instead of ordinary switches.

These cheap modules work by plastic, glass, or wooden, opening up many attention-grabbing potentialities for constructing a entrance panel. Of course, the thicker the floor above the module, the much less delicate the change is, however that’s not at all times a foul factor. In explicit, it’s possible you’ll wish to scale back sensitivity anyway. Thicker panels, lowering the dimensions of the contact pad, or including an exterior capacitor can scale back the sensor’s vary.

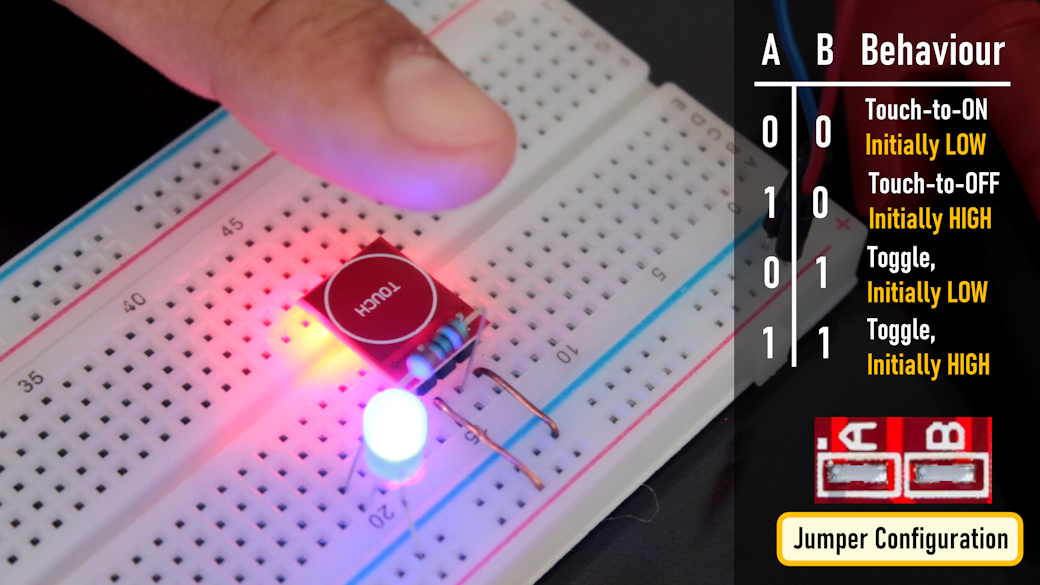

You could also be nervous about consuming up batteries with a bunch of digital switches. But in keeping with [Tarantula3], the modules devour lower than 2 microamps at relaxation. You can configure the modules with our favourite scripting language: solder. There are two jumpers, initially unsoldered, and this leads to 4 doable states. By default, the output goes excessive when somebody is touching the sensor and stays excessive till they launch.

However, you may solder jumper A to invert the output. Jumper B causes the change output to toggle on every press. Of course, you may as well do each jumpers, which toggles however has the alternative default state. If you get false triggers, take into account including a small capacitor to filter the ability provide to the module.

These would be great “drop ins” for 3D printing so as to add switches to your designs. You may even be capable to use these as power switches with a little work.
