Assembling And Testing A DIY Jet Turbine

After many months of painstaking work, [AlfMart CNC Garage] over at YouTube has lastly reached the stage the place he can fully assemble his DIY jet turbine and begin testing. Even if deceptively easy gadgets, simply the beginning mechanism turned out to be a problem. Due to the acute situations that these jet generators function underneath, tolerances are slender, and lots of the supplies require cautious choosing and testing.

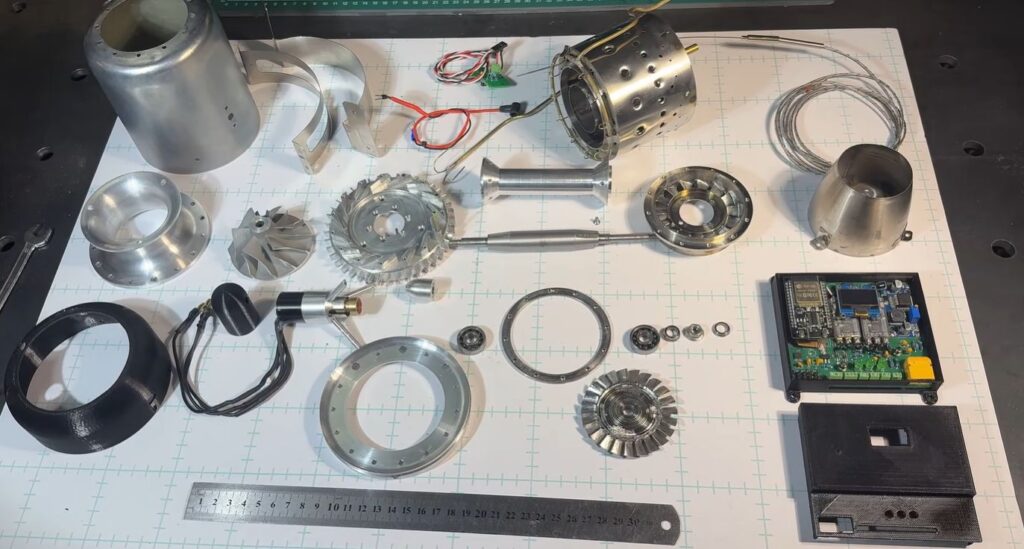

Fortunately this isn’t true for the outer casing, which is cobbled collectively from a industrial gasoline cylinder and a kids’s metal consuming bottle that so occurred to have the best dimensions. From there the elements get more and more extra specialised, all the way down to the carefully balanced rotor. Assuming every thing was executed proper up until this level, the primary start-up will imply a fortunately roaring turbine and never a deafening explosion adopted by a cloud of shrapnel.

In the video the total meeting might be noticed, together with detailed directions ought to anybody need to comply with together with their very own DIY jet turbine. Naturally quite a lot of consideration needs to be paid to tolerances through the meeting course of. Following the fundamental turbine meeting, the RPM sensor circuit and {the electrical} starter are added, with the latter permitting for the turbine to spin up previous to ignition.

The first fundamental starter checks revealed a problem with the starter motor and clutch mechanism, requiring some upgrades. Before the primary ignition the entire turbine needs to be dynamically balanced, for which first a brand new balancing rig will probably be designed and assembled. While because of this first ignition will nonetheless be some time off, it’s finest to take initiatives like this gradual and regular. We’re additionally wanting ahead to seeing this new dynamic balancing rig that’s claimed to be far more superior than that used for balancing the rotor.
