You Can Make A Microprocessor That’s All Your Personal

For some time now we’ve adopted the sluggish development of reasonably priced built-in circuit fabrication, and thru the likes of Tiny Tapeout we’ve seen spectacular strides made. But they’re not the one participant within the area, and [Breaking Taps] has a video showing their microprocessor constructed utilizing wafer.area.

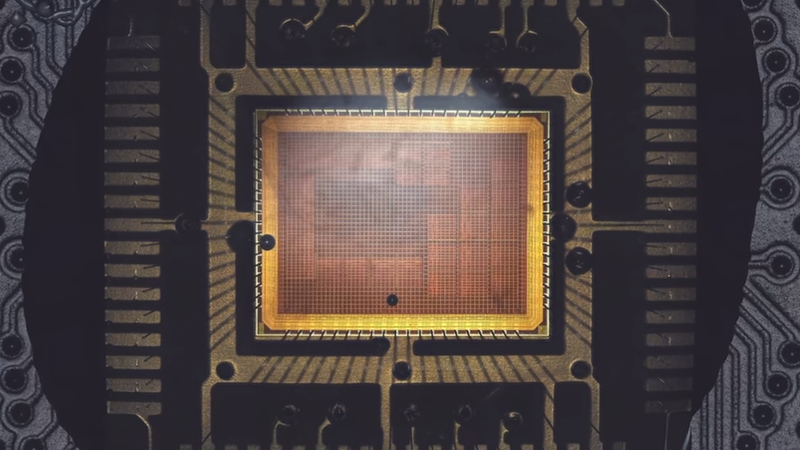

The microprocessor itself is a bit uncommon, being a transport triggered structure design with two busses. The entire factor would possibly higher be described as a system-on-chip than a microprocessor, as like a microcontroller it comprises each reminiscence and peripherals. He’s used Spade to design the factor, and we get an in-depth take a look at all of the steps concerned between design and fabrication. It’s a stage or two tougher than passing the DRC requirements to your PCB fabricator. The result’s a chip provider with the chip itself seen underneath clear epoxy. It’s utilizing an outdated fabrication expertise so the silicon is surprisingly large, however in contrast to Tiny Tapeout’s cell primarily based fabrication the entire chip is the one circuit. Mounting it on a PCB and utilizing a breadboard, he’s capable of show it operating easy packages.

It’s clear that having your personal IC fabricated just isn’t for everybody, as regardless that wafer.area has carried out minor miracles it’s nonetheless a service for people with a few dollars in hand. But take a look at it this fashion, we’re nonetheless close to the beginning of this specific curve, and we count on that additional affordability breakthroughs will comply with.
