Why filling all 4 of your motherboard’s RAM slots can backfire (and the way I discovered it firsthand)

Four RAM slots seem like an invite to fill each one. On trendy DDR5 platforms, although, extra sticks usually means slower reminiscence, longer boot instances, and shakier stability. Here is how reminiscence channels work, why 4 modules trigger bother, and what to purchase as a substitute.

How do motherboard RAM slots work?

Two channels, 4 slots, and one shared reminiscence controller

Every trendy shopper processor talks to reminiscence via an built-in reminiscence controller, and that controller is constructed round channels. On mainstream desktop platforms from each Intel and AMD, there are two channels, and each can host as much as two reminiscence modules. That is why most ATX and micro-ATX boards ship with 4 slots, organized as two per channel. Boards sometimes alternate slot colours or label them A1, A2, B1, and B2 so you possibly can inform which slot belongs to which channel.

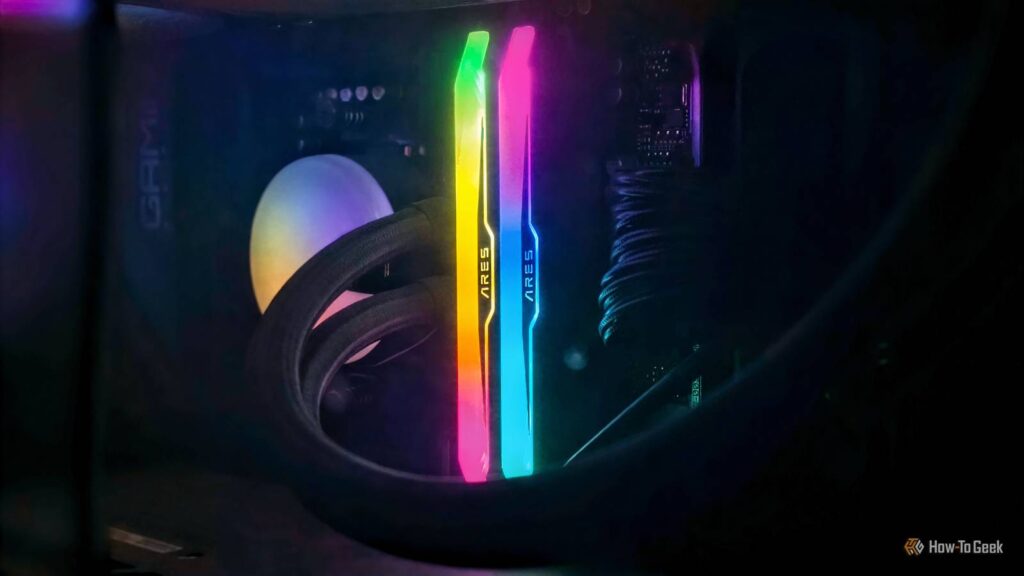

When you put in two sticks, the handbook virtually all the time factors you to the second slot of every channel, generally A2 and B2, so every stick will get its personal devoted channel. This is what delivers dual-channel operation, and it’s the purpose two sticks already provide the full bandwidth the platform gives. Adding a 3rd and fourth stick doesn’t add extra channels. It merely places two modules on each, a format engineers name two DIMMs per channel, or 2DPC.

DDR5 modified a few of the inside particulars. Each module now carries two unbiased 32-bit subchannels, and energy administration moved onto the module itself. For consumers, although, the sensible format stayed the identical: two channels, 4 slots.

Another issue is rank, which describes how a module’s reminiscence chips are organized into teams the controller can handle. Single-rank modules current one group, whereas dual-rank modules current two. Higher-capacity sticks, corresponding to 32GB DDR5 modules, are extra usually dual-rank, whereas many 16GB ones are single-rank, though producers don’t all the time publish this. The controller has to handle each rank on a channel, so the overall rank rely, not simply the variety of sticks, determines how onerous it’s working.

Slots, then, aren’t interchangeable bonuses. They are a shared electrical useful resource, and the extra you place on a channel, the extra the controller has to juggle.

Why might it’s a nasty concept to fill all 4?

More modules imply extra load and decrease speeds

The bother begins with electrical load. Every additional module on a channel provides sign reflections and noise, and DDR5 runs at such excessive knowledge charges that the margin for error is skinny. The reminiscence controller compensates by enjoyable speeds and timings, which is why a equipment rated for 6000 MT/s might refuse to run at that price as soon as all 4 slots are stuffed. Reports from builders and retailers put the fallback anyplace between roughly 3600 and 5600 MT/s, relying on the platform, the equipment, and the motherboard.

On AM5, discussion board customers notice that the formally assured velocity with 4 modules is significantly decrease than with two, and 4 dual-rank sticks are the toughest case, for the reason that controller has to deal with eight ranks directly.

Speed is barely a part of the story. Four-stick setups usually want longer reminiscence coaching at boot, and a few homeowners report startup instances a number of instances longer than with two sticks. Enabling XMP or EXPO, the one-click overclock profiles saved on the equipment, is often the place instability seems, within the type of random crashes, blue screens, or stutters in video games. Plenty of individuals run 4 sticks fortunately at default speeds, so this isn’t a assured failure, however it’s a gamble that two sticks merely don’t ask you to take.

Buying habits make issues worse. A motherboard’s Qualified Vendor List (QVL) might affirm that one equipment works, however that doesn’t validate two of the identical kits collectively. Kits offered as a set are examined as a set, whereas two separate kits, particularly ones purchased months aside, aren’t examined as a bunch of 4. If the overall capability is identical, 4 sticks is not going to outperform two, so that you tackle the danger with no efficiency payoff.

As for a way I came upon this was a nasty concept, it wasn’t catastrophic or something, however I did discover an elevated variety of crashes or slowdowns in video games after throwing in an additional two sticks of RAM. Definitely not one thing that made my PC unusable, however the change was instant sufficient for me to rapidly pinpoint it right down to that and take corrective measures—return the RAM and simply purchase larger sticks to exchange the 2 I already had.

What to do as a substitute

Buy two larger sticks and go away the remainder empty

The easiest repair is to purchase memory in two sticks and let the opposite slots keep empty. Decide how a lot capability you really want, then decide a single matched two-module equipment that delivers it: 2x16GB for 32GB, 2x32GB for 64GB, and so forth. Install the sticks within the slots your motherboard handbook names, often A2 and B2, so each sits by itself channel. Check the QVL to your board before you purchase, and replace the BIOS, since firmware updates usually enhance reminiscence compatibility.

Running out of RAM hurts efficiency way over a modest velocity discount, so select your capability round your actual peak use somewhat than round what appears tidy on paper. Two bigger modules additionally go away two slots open for the longer term—I do know this entire submit is to warn you towards utilizing them, however with RAM costs the way in which they’re, you would possibly really want them down the highway if you happen to want extra capability, instability be darned.

If you really want 4 sticks, say for video enhancing, digital machines or heavy workstation duties, deal with it as a undertaking. Buy a factory-matched four-module equipment somewhat than combining two separate ones, favor single-rank modules when you possibly can establish them, and be ready to decrease the velocity manually. Test stability with a device corresponding to MemTest86 or an prolonged stress take a look at earlier than trusting the system with vital work.

What if in case you have already stuffed all 4 slots and are seeing crashes or stutters? Try disabling XMP or EXPO, or set a decrease velocity corresponding to 5200 or 4800 MT/s, and see whether or not the issues disappear. If they do, you’ve discovered the perpetrator, and if they do not, the cleanest long-term reply is swapping to a two-stick equipment, which is what I did.

Two sticks beat 4 for many builds

Four slots don’t imply you need to use 4. Two matched sticks preserve the reminiscence controller snug, protect your rated speeds and keep away from stability complications. Fill all 4 solely when capability calls for it, after which plan for slower speeds, cautious testing and a factory-matched equipment.
