Why ESP32’s secret low-power options make it higher than Pi for battery initiatives
The distinction between a battery-powered sensor that runs for just a few days and one which runs for a 12 months comes all the way down to what the board does when it is doing nothing. Most DIY initiatives, like climate stations, mailbox alerts, or plant displays, spend 99% of their life idle. In these situations, idle draw issues excess of peak efficiency.

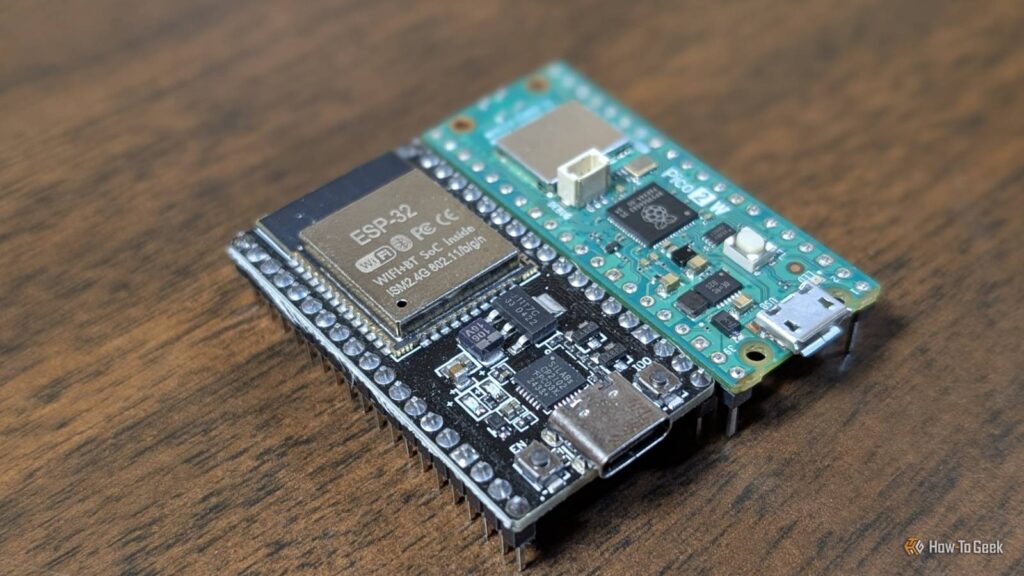

While Raspberry Pi boards are the default decide for a lot of makers, they have been constructed for compute, not for sitting idle for extended intervals. ESP32 chips, then again, function a number of power-saving options most individuals by no means use.
Deep sleep turns milliamps into microamps
Lower energy draw is important for battery life
Under regular circumstances, a microcontroller would possibly pull just a few milliamps by itself and as much as a number of hundred milliamps if there are extra power-hungry parts on the board. If you are operating a mission on a battery, each amp counts.
ESP32 helps a really efficient deep sleep that considerably cuts the quantity of energy a board attracts. In this mode, the CPU, a lot of the RAM, and the radios are powered off fully; solely the real-time clock (RTC), the wake timer, and a few RTC reminiscence keep energetic, that are important if you’d like the board to return again on-line by itself.
The distinction between deep sleep and common operation could be huge. For instance, an ESP32-C3 can draw as little as 5 microamps whereas in deep sleep. S3 and C6 boards can go as little as 7 microamps.
Now contemplate {that a} mission would possibly solely have to wake each 20 minutes to take a studying for just a few seconds after which return to sleep. That means a single 2,000mAh battery—which is a reasonably widespread capability—may conceivably run for months with no recharge.
Of course, actual boards will usually be larger since they’ve further parts. If you need to decrease your energy use, keep on with the best attainable board.
Even the low-power Raspberry Pi units, like the RP2040 and the RP2350, eat between 500 microamps and 750 microamps after they’re in “deep sleep.”
Some ESP32 boards have an ultra-low-power processor
A tiny second CPU retains working whereas the primary chip sleeps
The ultra-low-power (ULP) coprocessor is a tiny secondary CPU that may proceed working whereas the primary, extra highly effective CPU is in deep sleep.
That permits your mission to do easy issues, like ballot GPIOs, learn sensors, or verify an ADC worth with out activating the primary CPU in any respect. The ULP processor can then selectively wake the large CPU when its further processing energy is definitely wanted.
Over weeks or months, these energy financial savings add up.
There are two large wrinkles to remember. The first is that not each ESP32 board has a ULP processor, and even amongst those who do, do not all have the identical processor, which implies their capabilities could be fairly completely different. Some use a easy state machine, whereas others have a low-power RISC-V CPU.
The second is that you need to program the ULP coprocessors individually, however that is not a big drawback contemplating the payoff.
Light sleep and ESP-NOW preserve it linked
Go straightforward on the Wi-Fi radio
Wi-Fi is usually a significant issue if you’d like a tool to run for months at a time. Turning on the Wi-Fi radio, connecting, transmitting information, after which disconnecting is fairly energy intensive in comparison with an ESP32 idling or in deep sleep.
To keep away from that energy drain, you may put the modem to sleep and toggle on automated gentle sleep. That turns off the modem and pauses the CPU however retains the contents of RAM, so startup solely takes a small fraction of a second.
You can even go for ESP-NOW, which is a peer-to-peer protocol that lets ESP32 boards talk immediately with out connecting to a Wi-Fi community first. It would not get rid of all overhead and it is not appropriate for each software, however it does allow you to decrease how a lot time the ESP32 stays on-line.
Solar and small energy sources are literally practical
ESP32 sips energy

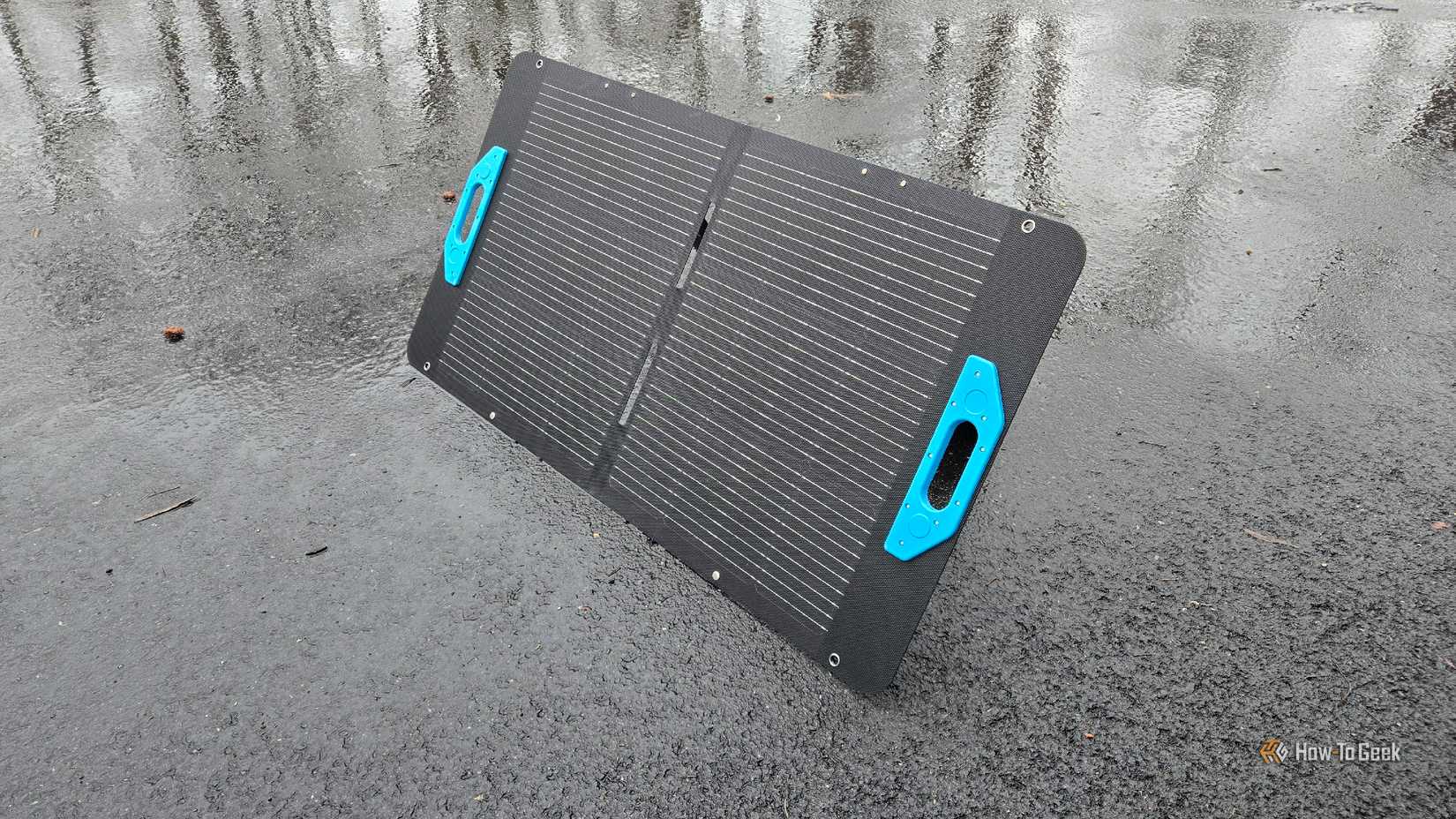

If you are cautious, you may preserve an ESP32’s common energy draw on the order of some milliwatts, which is the sort of factor a small solar panel can cowl with no drawback, even on cloudy winter days. Even a Pi Zero 2 W, which is itself a fairly low-power system in comparison with the opposite Raspberry Pis, consumes on the order of 500 milliwatts continually.
If you need to run a Pi-based setup on a battery and photo voltaic panel, you may have to upsize each your battery and your panel.
You may even purchase ESP32 boards which have built-in connections to deal with battery charging, which simplifies your setup.
There can be a common reliability benefit right here. ESP32 boards are extraordinarily easy, and an influence loss in the course of the night time simply means the board reboots usually as soon as the solar comes up and recharges the battery. A Pi Zero that loses energy in the course of the incorrect operation may corrupt its microSD card, which requires you to manually repair it.
For battery and photo voltaic builds, the ESP32 is the higher default
Even although boards primarily based on the RP2040 and the RP2350 eat much less energy than the total Raspberry Pis, just like the Zero 2 W or the Pi 5, they nonetheless eat considerably extra energy than a well-optimized ESP32 board. A battery that might energy an ESP32 for months may solely run a Pi 5 for hours or a Pi Zero 2 W for a day or so (optimistically).
When you mix ESP32’s deep sleep, the elective ULP cores, and radio modes designed to attenuate energy use, the ESP32 is the higher selection for easy battery-powered initiatives.
