Why Do Some Ships Have Bulbous Bows?

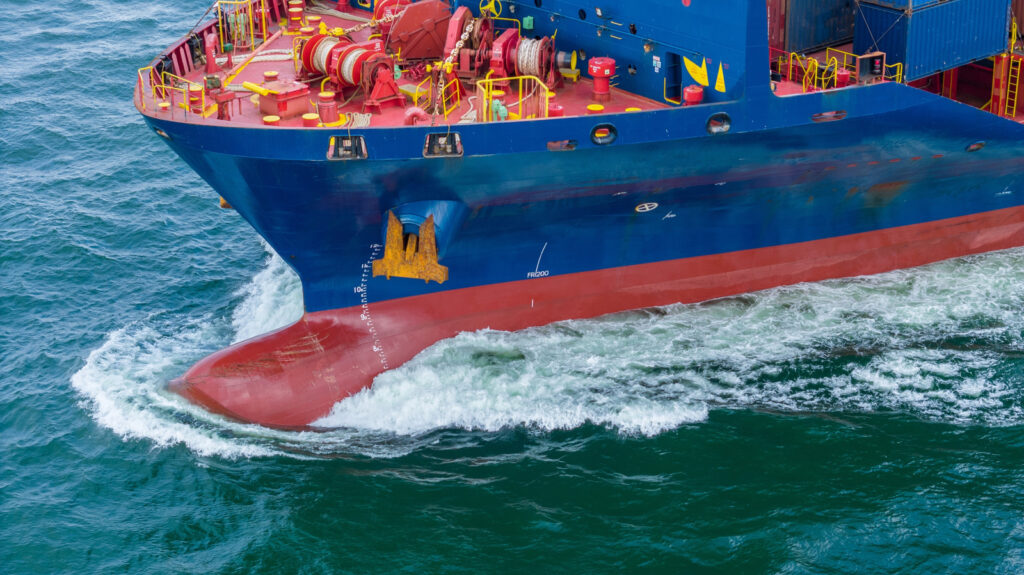

Modern ships are available an enormous array of styles and sizes, however other than some super-specialized ships that look different from virtually the rest, a lot of them have just a few shared traits. One of these is a bulbous bow, which may be seen across the ship’s waterline and normally protrudes from the primary hull. Bulbous bows have been used for many years as a result of they will enhance a ship’s effectivity by lowering drag.

Assuming {that a} ship is touring sufficiently quick, the bulbous bow creates a separate wave from the one that’s generated by the ship’s hull. When the 2 waves work together, they are going to be out of part, and so they can both partially or completely cancel one another out. A lowered or canceled-out wave reduces resistance on the ship because it travels by the water, which in flip can assist make it extra environment friendly. Depending on the ship’s velocity, the design of the bulb, and the form of the hull, the effectivity good points can range considerably. The sort of situations the ship is working in also can make a giant distinction, with ships navigating icy waters gaining an additional benefit as a result of the bow can tip ice floes to slip extra simply alongside the facet of the hull.

Researchers have spent many years growing fashions to create an optimized bulb relative to the form of a person ship’s hull, besides, some ships nonetheless do not profit from having one. In explicit, ships that journey too slowly for the wave-reducing impact to happen usually are not good candidates for becoming bulbous bows. In some instances, these slow-moving ships would possibly really see a drop in effectivity with one fitted, which might result in elevated gasoline consumption.

In addition to affecting the working prices for ship house owners, modifications in a ship’s gasoline effectivity even have environmental implications. Since most ships use diesel engines, a rise in effectivity can lower greenhouse fuel emissions, and likewise a drop in effectivity may have the other impact. When it is designed accurately, a bulbous bow is usually a comparatively inexpensive manner for shipbuilders to scale back the lifetime emissions and working prices of a brand new ship.

Retrofitting a ship with a bulbous bow would not present the identical clear-cut advantages, and so many older ships merely do not have them. However, some researchers have argued that given the lengthy service lives of smaller ships like fishing vessels, it’d nonetheless be a change that is value contemplating if the ship spends a protracted sufficient time touring at speeds excessive sufficient to justify the price of modification.

While bulbous bows is usually a helpful manner to enhance ship effectivity in sure circumstances, they’re removed from the one trick that shipbuilders use to scale back gasoline utilization. Among different issues, some commercial ships blow bubbles underwater to scale back drag, and plenty of characteristic red anti-fouling paint to discourage the expansion of drag-inducing hitchhikers like barnacles and worms.
