What Do The Numbers Mean On Helipads & Why Are They Important For Helicopters?

Most of us are aware of the enormous H that is painted on many helicopter touchdown pads. Apart from the apparent “H” affiliation with helicopters, the “H” is actually there for an important reason that signifies greater than only a helicopter’s touchdown space. Helipads do not simply have the “H”, although; they typically show numbers to offer the pilots essential data.

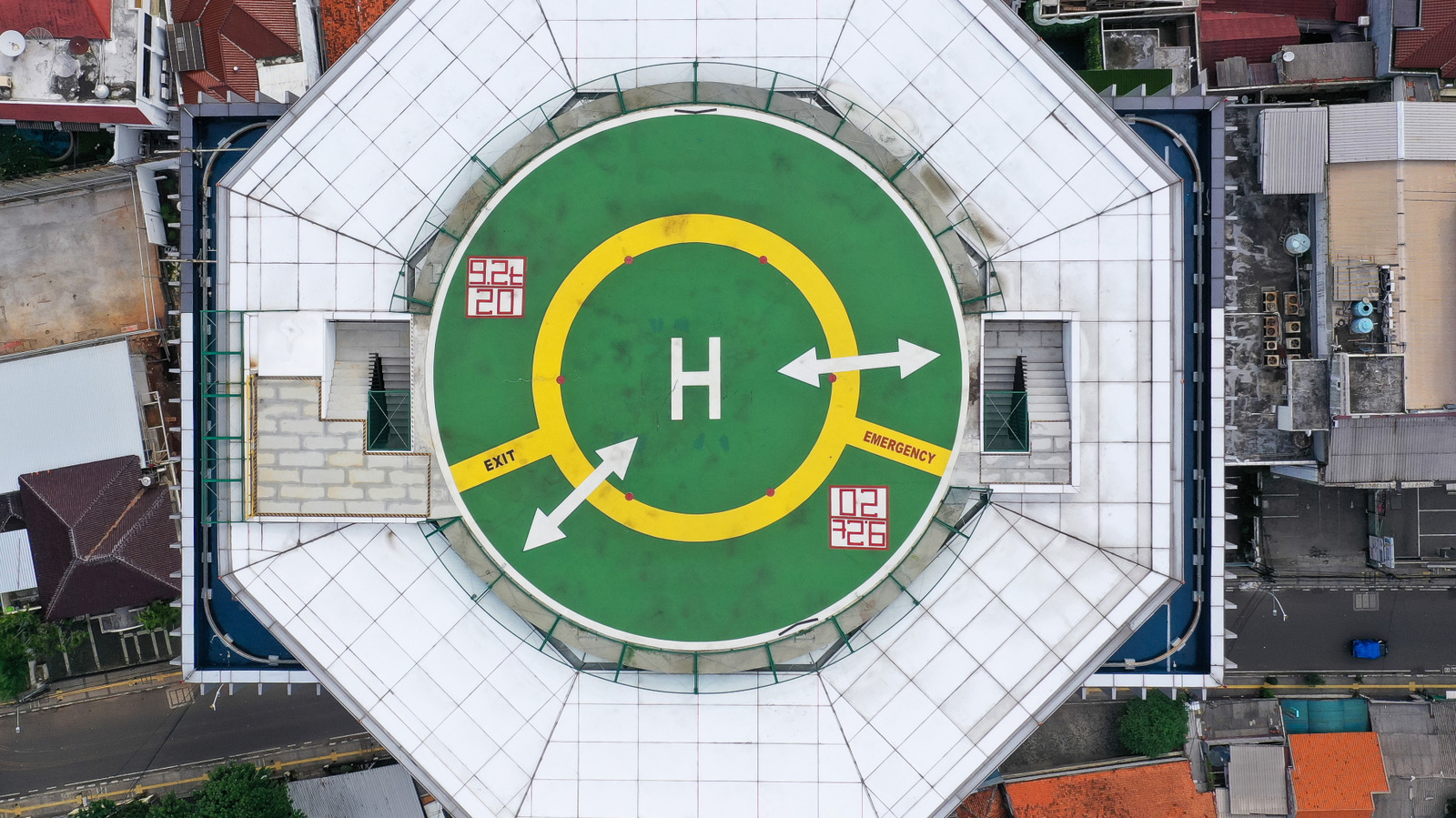

For occasion, on many rooftop pads — particularly these on hospitals, company buildings, and different high-rise constructions — you will typically see one or two massive numbers painted close to the touchdown space. These inform the pilot the utmost weight and most rotor diameter the pad is designed for, in line with an Federal Aviation Administration (FAA) Advisory Circular. Note, nonetheless, that the FAA scheme is solely voluntary, and that the precise format — if numbers are current, which is not all the time the case – could differ.

If we go by FAA tips, the quantity 4 painted in an oblong field tells the pilot that the burden restrict is 4,000 kilos. Below this can be an alphanumeric code — like D40 — that reveals the pilot the most important rotor diameter in toes that the pad can deal with. Both will dictate what choppers can land safely, serving to pilots keep away from unlucky incidents. Some helipads additionally show a singular identifier, though not each helipad has an official, registered identifier.

Beyond weight and dimension indicators, the FAA Advisory Circular additionally particulars different markings meant to make helicopter operations safer and the way helipads ought to show them. One of the commonest is the Touchdown and Liftoff Area (TLOF), outlined by a steady 12-inch boundary line marked in white or by reflective markers that inform the pilot the place it is secure to land. Another boundary is the Final Approach and Takeoff Area, which outlines the secure strategy and departure zone. The FAA recommends helipads mark these with a 12-inch dashed line.

Hospital helipads typically characteristic variations on the theme. For occasion, they could additionally incorporate a cross into the paintwork, or paint the ever present “H” in crimson. A couple of pads additionally embody directional arrows that point out most popular strategy and departure routes. The FAA recommends that these be 10 toes lengthy. Arrows pointing towards the middle of the TLOF point out the strategy course, and people pointing away from it point out the departure course.

While helicopters are renowned for being able to land just about anywhere, the markings on a helipad could make the job safer and simpler. However, as a result of these markings are FAA suggestions relatively than strict necessities, many non-public or older pads use simplified or non-standard layouts. So, the precise mixture of numbers and symbols can differ broadly from one website to a different.
