The quickest USB port in your PC comes at a steep price of slowing down the others

Not all USB ports are the identical, and the simplest technique to tell them apart is by the color codes that point out their generations — for USB-C, markings present the underlying normal and capabilities. For high-performance gadgets like a USB thumb drive or an exterior SSD, I like to recommend utilizing USB 3.0 or USB4 ports to get most velocity.

However, regardless of their velocity, these ports include a big trade-off no one tells you about.

USB 3.0 and later ports and gadgets generate high-frequency electromagnetic noise that may intervene with close by 2.4GHz gadgets linked by means of different ports, reminiscent of peripherals or Wi-Fi and Bluetooth adapters, probably disrupting their alerts and slowing them down.

Your USB 3.0 and newer ports are jamming your wi-fi adapters

Port placement makes this worse

USB 3.x ports are extremely quick and run on high-frequency alerts. Specifically, ports and gadgets that assist SuperSpeed run at 5Gbps.

Now, most wi-fi peripherals and adapters, like Wi-Fi and Bluetooth, share the identical 2.4GHz frequency, and noise from newer ports and cables can disrupt their radio sign. When this occurs, you may expertise frequent sign drops and hitching when utilizing the peripherals or adapters.

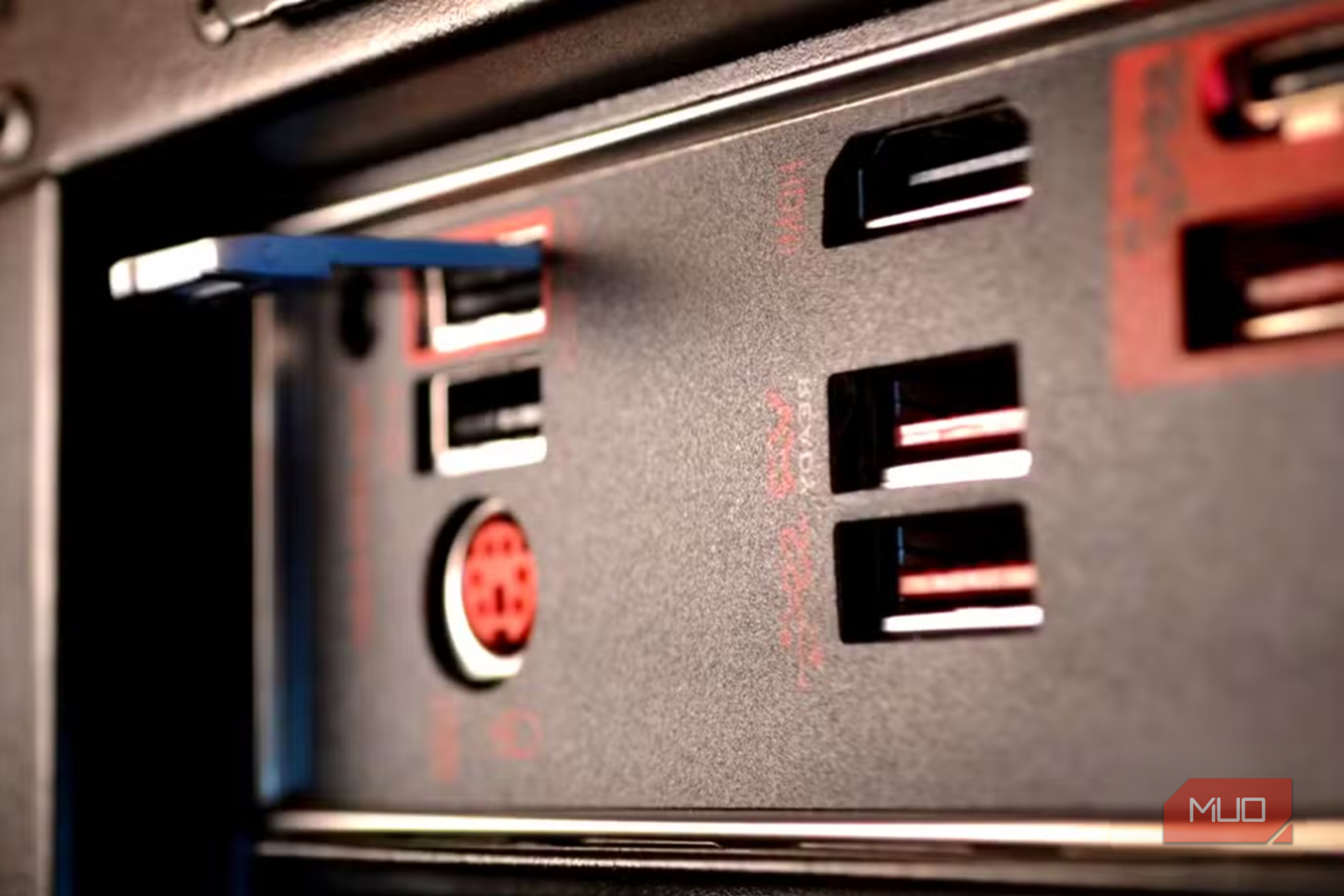

Motherboard producers place most USB ports collectively, and that is been the apply for so long as desktop computer systems have existed. If they do something totally different, the location will look awkward, and a number of ports stacked collectively make up for comfort. Initially, it did not matter as a result of ports predating USB 3.0 produced far much less interference.

However, when multiple ports are grouped on laptops, desktops, or hubs, with USB 2.0 and USB 3.0+ in proximity, the interference worsens, and the disruption bleeds into 2.4GHz gadgets, inflicting frequent slowdowns. Intel first revealed this difficulty in 2012, but it might probably nonetheless have an effect on your machine some 14 years later.

USB4 raises that to 20Gbps or 40Gbps over USB-C, creating even higher-frequency alerts, although it additionally options higher shielding than USB 3.x. As USB4 wasn’t accessible on the time of the unique analysis, there was little to no analysis into this difficulty since USB4 launched. On that observe, this downside largely impacts USB 3.x configurations and gadgets, regardless of USB4’s greater frequencies.

Your ports are additionally splitting bandwidth behind the scenes

Two quick gadgets linked by means of a single controller could cause a slowdown

Beyond radio interference, one other trigger can decelerate your USB port. When one USB port is being confused, it might probably probably decelerate the opposite ports. USB gadgets linked by means of a single controller share restricted bandwidth, so you are not assured full speeds throughout all ports on the similar time.

For occasion, when you have an exterior SSD and switch knowledge by means of a USB 3.1 or USB-C port, it would saturate the bandwidth accessible to that controller. With USB4, the identical bandwidth difficulty persists, and since it might probably carry video too, that bandwidth is taken away from the opposite ports linked by means of the identical controller.

The bandwidth apportioned to every controller is split throughout the ports, no matter USB era. So, pushing the load on the opposite port linked by means of the identical controller can break up the bandwidth throughout each gadgets, so neither will attain the marketed full speeds.

However, it actually relies on the motherboard’s topology, together with how ports are partitioned between controllers and which ports share the identical controller. For essentially the most half, USB ports sharing the identical controller are stacked subsequent to one another. Here’s the way to repair each these issues

A easy port swap is all it takes

The finest technique to inform you’re experiencing a radio frequency slowdown is that, when stressing gadgets linked by way of USB 3.0 and newer ports, you may discover cursor lag, keys taking too lengthy to register, uneven audio with wi-fi peripherals or your Wi-Fi lagging.

For the radio difficulty, the only repair is to change the ports your machine is linked to. I like to recommend leaving a substantial hole between USB 3.0 and USB 2.0 gadgets. Even when USB ports are stacked, some nonetheless have a spot between them; my B550 motherboard has a ShowPort that bridges the hole between all ports, so I like to recommend benefiting from such a structure if offered.

To inform for those who’re experiencing a bandwidth break up, high-speed gadgets linked concurrently could decelerate and never attain the speeds the ports are marketed for, which occurs once they share the identical controller.

The repair is simple. Just do not use two high-speed gadgets in ports that share the identical controller. USB4 ports are already restricted on a pc, so verify the motherboard guide earlier than plugging a USB4 SSD and a USB 3.x machine aspect by aspect. Again, there may be restricted analysis on USB4 gadgets and ports, but when USB 3.x is in play, it is price contemplating.

Also, totally different high-speed ports are scattered all through, both on the entrance panel or on the motherboard, so as soon as once more, break up the gadgets throughout totally different ports.

However, all controllers may nonetheless restrict bandwidth at a sure threshold (which a median person is unlikely to hit) as a result of the general bandwidth allotment for USB gadgets is not limitless both.

The repair is free, however your motherboard structure issues

For essentially the most half, USB layouts have remained constant throughout motherboards, and USB 3.x port radio interference was by no means actually thought-about. This is not a design flaw per se, however extra of a design problem that you may simply resolve by altering the association in your PC, although you’d nonetheless want to determine your motherboard’s configuration first.
