Pitting A CFD-Optimized Toroidal Propeller Towards A Standard One

Although we frequently suppose that we received sure facets of aerodynamics just about licked at this level, particulars just like the optimum form of a propeller stays hotly debated, each in- and outdoors of teachers. This additionally consists of wilder designs like toroidal propellers that even after greater than 100 years are nonetheless largely simply being evaluated. Recently [Neuronautics] took a shot at determining whether toroidal propellers even make sense.

In order to do that, first an effectivity baseline was established utilizing a standard and extremely optimized propeller. After scanning it in to get its actual geometry and operating it via a computational fluid dynamics (CFD) simulation, the software program spat out a variety of about 73%.

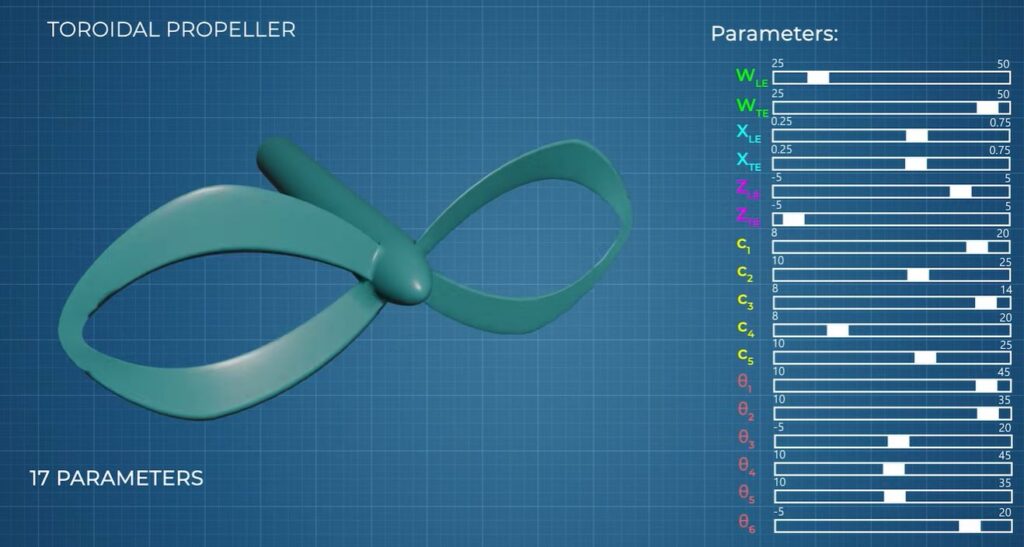

This left determining an optimized form for the toroidal propeller to pit in opposition to it. While you possibly can completely brute-force the seventeen form parameters being thought of right here and take a look at them in CFD, this might take insanely lengthy. The hack right here is to make use of a number of reference body (MRF) to drastically velocity up the choice course of, although even then it nonetheless took two months. An instance of utilizing MRF with common propellers is mentioned  in a 2019 paper by [Randi Franzke] et al. in Energies.

Although MRF saves quite a lot of simulation time, you continue to find yourself with quite a lot of knowledge that needs to be analyzed for attention-grabbing patterns. For this [Neuronautics] educated a synthetic neural community to automate filtering the numerous choices for probably the most optimum ones, till converging onto a single design.

This G1401 design was the fortunate winner, although with solely a simulated 62.9% effectivity. Subsequently the one side that had been left unchanged was additionally iterated via, within the type of many alternative airfoil shapes till the ultimate design appeared.

This design was then 3D printed in resin, which confirmed the primary hurdle with the choice course of, in that the printed variations have been too skinny and versatile to be usable as propellers. Cue many hours of guide tweaking of the design to make it really printable.

Although the ultimate design didn’t exceed 62% effectivity in a closing take a look at, the remark part to the video rightfully factors out that the comparability was between a commercially made propeller and a DIY resin-printed one, which provides an entire different batch of variables. That stated, it’s unlikely that there’d have been an apparent enchancment both manner, in any other case we’d have already got seen toroidal propellers pop up in all places on drones and plane.
