Muncie M20 Vs M21 Vs M22 Transmissions: What’s The Distinction?

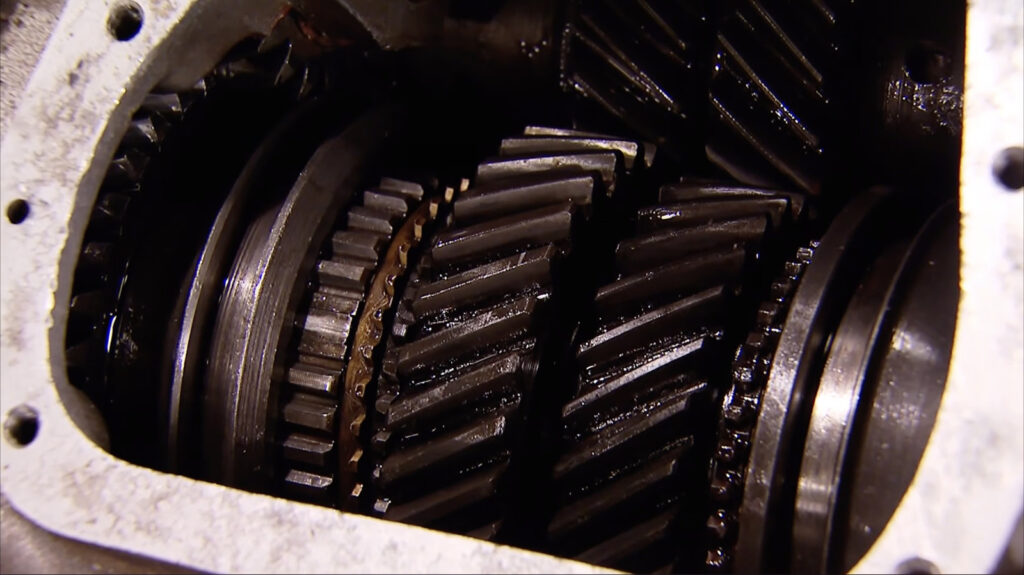

While automated transmissions dominate the U.S. market at this time, some drivers nonetheless choose the whole management {that a} handbook transmission gives. The recognition of automated transmissions might also clarify a few of the common manual transmission myths, corresponding to stick shifts being tougher to drive or carrying out sooner. That stated, a handbook transmission remains to be the popular choice for muscle automobiles, and a few of the best-known examples are the Muncie four-speed transmissions utilized in numerous General Motors autos through the muscle automobile period — particularly, the M20, M21, and M22. All three of them might look comparable, however totally different gear ratios and inside designs give every a definite persona.

For starters, the principle distinction between M20 and the opposite two is that M20 is a wide-ratio transmission. Compared to M21 and M22, M20’s decrease first gear offers the automobile extra pulling energy when ranging from an entire cease. Those greater steps between gears additionally make the M20 a pure match for relaxed driving round city. During its manufacturing run, the M20’s gear ratios modified, beginning at 2.56:1 for the primary gear in 1963, to 2.52:1 in 1966 and past. The second, third, and reverse gears noticed comparable modifications, whereas the fourth gear ratio is similar in all Muncie transmissions: 1:1.

Compared to M20, each M21 and M22 are close-ratio transmissions. Out of the 2, M21 got here first in 1963, whereas M22 appeared a few years later. The M21 has nearer gear ratios, so the engine stays nearer to its energy band as the motive force shifts up via the gears. It runs 2.20:1 in first, 1.64:1 in second, 1.28:1 in third, and a couple of.27:1 in reverse gear. That made it higher suited to efficiency driving, for the reason that revs did not drop as far on every upshift, although the trade-off was much less leverage off the road. It’s no shock that the M21 discovered its manner into ’60s SS and Yenko Camaros.

Finally, the M22 transmission is just like the M21, and you may consider it as a heavy-duty model. It makes use of the identical M21’s gear ratios, nevertheless it has the next torque capability. The M22’s gears are made from increased content material of nickel alloy, and minimize at a decrease helix angle in comparison with the M21,making it extra sturdy. Interestingly, the M22 transmission is also called the “Rock Crusher” because of the loud gear whine it makes, attributable to the straighter-cut design of the interior gears. It was most frequently utilized in big-block muscle automobiles and Corvettes, and was supplied with the LS6-powered 1970 Chevelle SS 454, which is arguably among the many most impressive muscle cars ever built by Chevy.
