Making Photovoltaic Photo voltaic Cells With A Microwave

Although photo voltaic panels might look like a sort of magic, they’re actually fairly easy units, of their silicon type that includes nothing however the p-type silicon wafer and an n-type layer doped with e.g. phosphorus. Because of this simplicity it’s fairly attainable to make your individual photo voltaic cells at residence utilizing only some primary, off-the-shelf elements and a kiln, which in this recent video by [Dr. Semiconductor] makes use of a microwave kiln and thus justifies the video’s title.

Even the silicon wafer that you simply begin with may be simply bought on-line, although you must watch out that it’s a naked wafer, with out current etchings on it. On this you want to get a phosphorus-rich layer, which is completed by making a scrumptious combination of 1 mL of tetraethyl orthosilicate (TEOS), 0.3 mL of 85 wt% phosphoric acid, 5 mL of ethanol and 0.25 mL of distilled water. After low warmth boiling this for half-hour, it’s spincoated onto the minimize sq. of silicon wafer utilizing a spinning platform, like a PC fan.

Next, you shove the coated silicon into the kiln and put it into the microwave to bake at a reasonably low energy stage for half an hour. In the video it took lower than 50% energy of the microwave to not soften the silicon, so keep in mind that these microwave kilns get fairly sizzling.

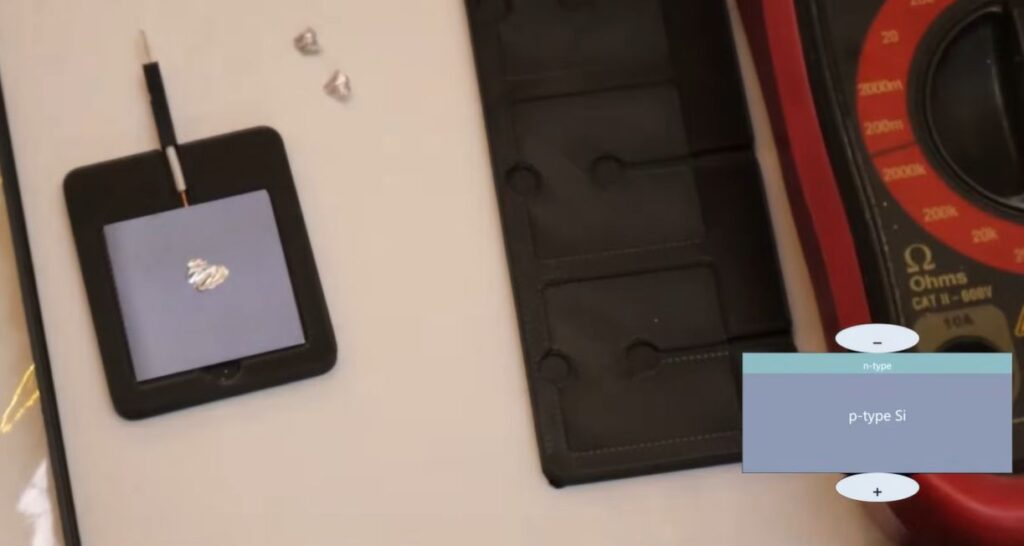

With the pleasant smells of freshly baked silicon now teasing your nostrils, you may then take out the doped silicon to sand or etch off the skinny layer of glass that’s shaped across the new PV cell. On the clear spots now you can put a gallium-indium contact on the p-type Si aspect and a wad of indium on the newly doped Si-P aspect, which at the moment are your contacts for the PV cell.

The full recipe together with most of the points mentioned within the video can be discovered on the blog article, although the video conclusion notes that many enhancements are nonetheless attainable. The created PV cell within the video reaches an effectivity of about 5%, however this might be improved by modifications like using a clean-room, including an anti-reflection coating and bettering the contact with the cell.
