Geothermal Cooling For New York’s Subways

You would possibly assume that if you happen to dug some tunnels down into the bottom the place you may be out of the sunshine, that you just would possibly discover them to be comparatively cool and cozy inside. Yet, fill these tunnels with trains and supporting gear and thousands and thousands of commuters, and also you’ll as a substitute end up sweltering within the warmth.

New York’s subways are too sizzling for consolation, and have been for a while. Unfortunately, not like any outdated common constructing, you may’t simply air situation a subway and name it performed. Instead, authorities are in search of different options to beat the warmth on the well-known underground transit community.

Steal My Sunshine

The downside of extra warmth is just not distinctive to the New York subway. Similar points are present in underground rail techniques across the international stage; the London Underground is infamously hot and uncomfortable, to the purpose one part is known as the Central Heat Line. The trigger is straightforward sufficient—warmth pours off the trains, their motors, their brakes, and even commuters, and it builds up within the system. Air conditioned trains solely add to the difficulty, too. They expend vitality to pump warmth out of practice cabins, however they’re simply expelling it into the system round them whereas including slightly bonus warmth as well. It doesn’t assist that many subway techniques have been first constructed nicely over 100 years in the past, and aren’t precisely spacious or nicely designed for coping with extra warmth that wasn’t an issue once they first opened and ran at decrease capability.

Now, sometimes, when a constructing will get too sizzling, we take a look at utilizing air-con to carry temperatures down. However, the distinctive nature of subways makes this very tough to execute. Subways have miles upon miles of tunnels which might be open to the platforms, so an air-con system would simply be pumping chilly air off into these deep voids to little native impact. Subways are additionally stuffed with open entrances which don’t assist, both. As a lot as you may attempt to domestically cool areas of the subway, even a bunch of enormous HVAC models would barely make a dent.

In New York, although, the issue has gotten to the purpose that the city and state have decided to act. The plan is to review the applying of a Thermal Energy Network (TEN) to the subway, which can happen as a part of upgrades being made to the Brooklyn Bridge 4/5/6 and Chambers Street J/Z station advanced. Notably, Brooklyn Bridge 4/5/6 recurrently hits temperatures of 96 °F (35 °C) throughout the summer season months, giving it the unenviable title of one of many hottest stations within the subway community. This makes it a chief candidate for any kind of warmth mitigation effort.

A thermal vitality community (TEN) is designed to maneuver warmth between buildings, taking it from the place it isn’t wished and shifting it to someplace it may be extra helpful. It entails drilling grids of boreholes a whole bunch of toes deep into the bottom, the place temperatures keep a lot cooler and extra steady—as little as 55 °F (12 °C). Pipes are then put in across the subway station that run into these boreholes. Circulate fluid by way of the station pipes, and the fluid picks up warmth from the subway station. That fluid is then run into the boreholes, the place it offers up its warmth and is chilled, after which the fluid is recirculated to the station to proceed the cycle.

Over time, the bedrock across the boreholes heats up, and it might then be used as a kind of thermal battery in winter. Fluid can then be circulated into the boreholes to warmth it up, after which that fluid will be pumped to different municipal buildings that want warmth within the cooler months.

The know-how isn’t new—geothermal boreholes have been used for a while throughout Europe and Canada as a technique to obtain cooling. There’s even a system in Coney Island, the place 153 geothermal wells are used to supply consolation for a condominium in-built 2019. Still, implementing a system sufficiently big to carry down the excessively excessive temperatures in New York’s subway system may but show a problem. For now, the venture is a examine to discover whether or not such an idea may make a significant distinction to person consolation within the station. If it proves workable, although, anticipate there to be enormous demand from commuters to roll out related techniques throughout different stations in New York and past. The sweaty subway may but be a factor of the previous, merely requiring the engineering and can to take action.

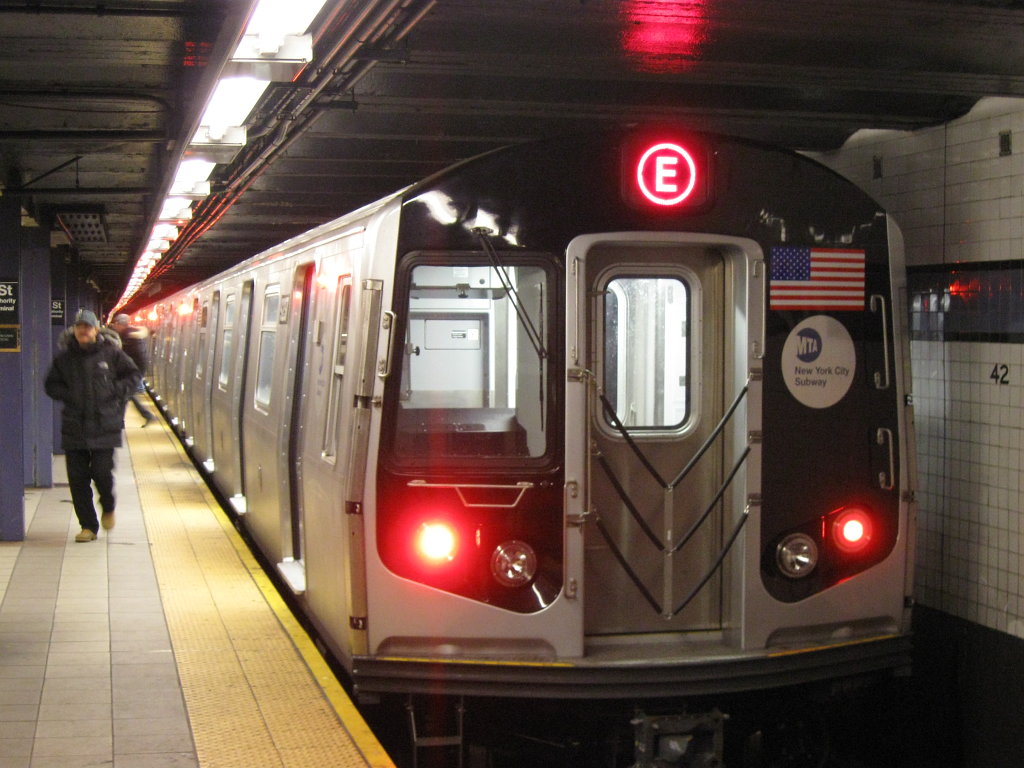

Featured picture: “NYC Subway R160A 9237 on the E” by [Adam E. Moreira].
