Each Kind Of Present Sensor Defined

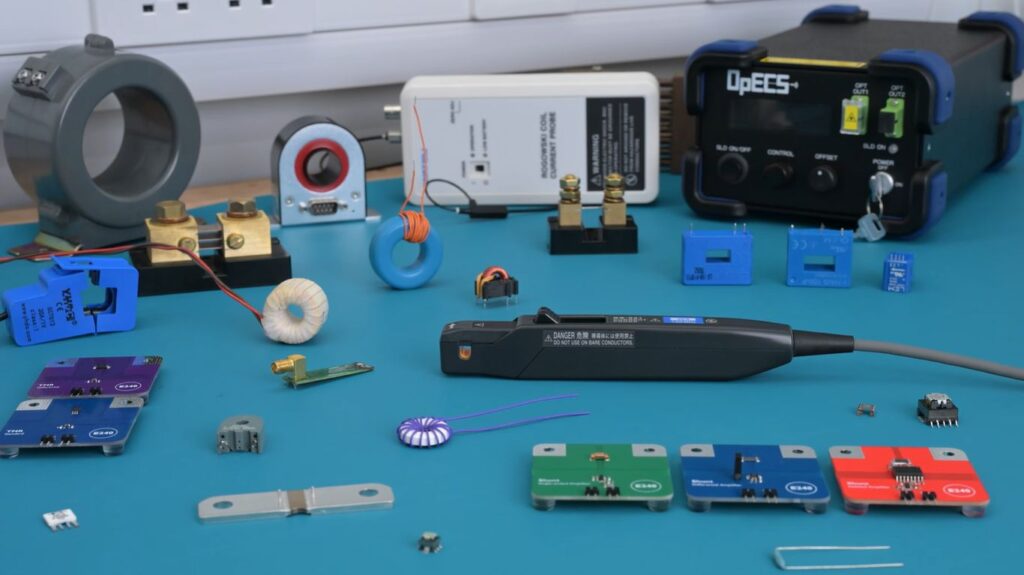

Measuring electrical currents is a necessary ingredient of many electrical methods, however doing so in a means that’s as nonintrusive as attainable just isn’t a simple drawback to resolve. Due to this we obtained all kinds of present sensors to select from for any given utility, with [ElectrArc240] running us through these variants in a latest video.

The pretty low-tech, low cost and fairly dependable technique of utilizing a shunt resistor is first demonstrated. This sees plenty of use in pretty low-voltage and low-current functions, with for instance videocards utilizing it to restrict the quantity of energy the GPU can use, a characteristic that modders will fortunately bypass. Here merely the voltage drop throughout a identified resistance worth is measured, from which the present may be derived.

Of course, you bought larger voltage and better present functions too, in addition to direct- and alternating present, with the latter particularly permitting for straightforward present measurements merely from the electromagnetic subject, or flux. Anyone who has used a clamp meter can attest to that such contact-free present sensing works, even for DC functions.

Beyond the essential transformer kind you bought many variants together with Hall-Effect, TMR and fluxgate sensors, in addition to the fiber-optic present sensor that makes use of an interferometer to measure the phase-change induced by the magnetic subject – the Faraday impact – to the transmitted electromagnetic radiation. These extra unique sorts will enhance decision, at the price of a quickly growing void in your mission price range.

These numerous sensor sorts and their building are demonstrated and mentioned within the video, together with once you’d need to use a selected kind, and what the potential gotchas are with every kind. Even if for a lot of functions a easy shunt resistor suffices, it’s a good suggestion to know these differing kinds, in addition to their underlying principle of operation.
