digital fibers flip cloth into washable touchscreen

digital fibers flip cloth right into a touchscreen



Researchers on the National University of Singapore (NUS) have developed a touchscreen built-in instantly right into a garment utilizing digital fibers that mix light-emitting diodes (LEDs) and contact sensors. Led by Assistant Professor Tural Khudiyev, the group integrates 54 of those fibers right into a sleeve to create a versatile show that exhibits photographs and video, responds to finger presses, and connects wirelessly to digital units. The analysis introduces a textile interface that retains the breathability and adaptability of on a regular basis clothes whereas withstanding machine washing.



Unlike typical wearable know-how, which generally attaches a display screen or digital machine to the physique, the NUS group’s method builds show and contact performance into the fibers themselves. Each thread accommodates interconnected microelectronic elements inside a construction only one millimeter thick, permitting the material to perform as an interactive display screen with out a inflexible show panel. The prototype measures 168 by 105 millimeters, refreshes at 30 frames per second, and retains practically unchanged show and contact efficiency after 50 machine-washing cycles. The know-how might ultimately permit clothes to perform as an interface for digital data, environmental sensing, and well being monitoring.





the best way to flip a thread right into a display screen



Conventional digital circuits are designed on flat surfaces, the place elements could be organized and linked throughout two dimensions. A thread, against this, is slim and cylindrical, leaving little room for the advanced wiring wanted to function a show. In order to beat this limitation, the researchers developed an interconnection structure that enables hundreds of microelectronic units to be linked alongside a single fiber. The course of begins with tiny, insulated wires. A laser exposes particular factors alongside their surfaces, whereas managed wetting directs molten solder to the designated places, creating electrical connections with out becoming a member of unintended areas. Using this methodology, the group built-in greater than 5,000 chips by over 20,000 electrical connections.



The interconnected digital LEDs are then integrated right into a multilayer fiber utilizing a thermal drawing course of. The ensuing thread measures roughly one millimeter in diameter and 10 meters in size, with separate layers answerable for displaying photographs and detecting contact. A touch-sensitive layer sits beneath the LEDs. When somebody presses the fiber, the contact completes {an electrical} circuit, permitting the system to establish the situation of the contact and illuminate the closest pixel. Display and interplay due to this fact occur inside the similar thread, moderately than by separate elements hooked up to the material.





a tool that behaves like cloth

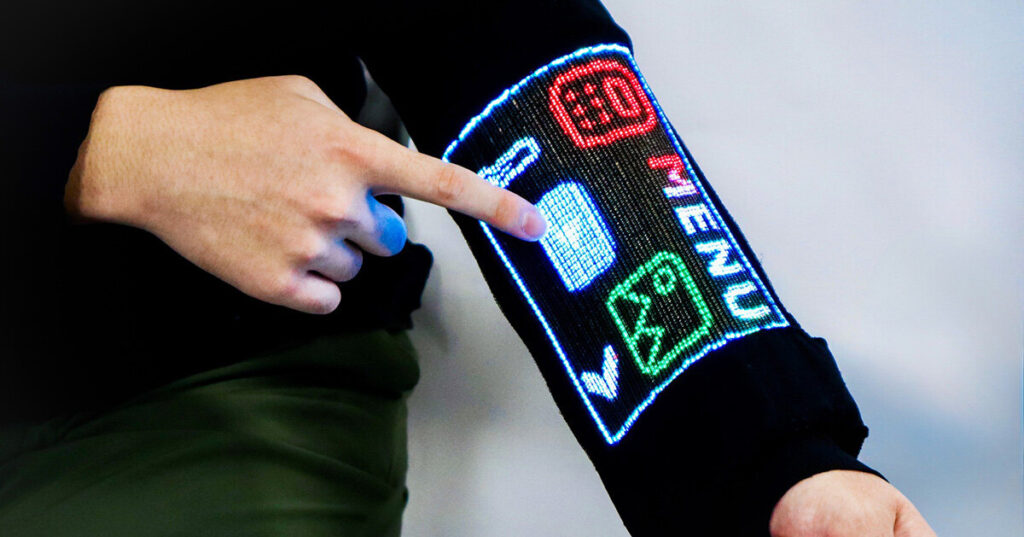

For the prototype, the group threaded 54 pixel-bearing fibers into the forearm of a sleeve. Each fiber carries 96 LEDs, combining to type a 96-by-54-pixel show measuring 168 by 105 millimeters. The display screen refreshes at 30 frames per second and helps 8-bit colour depth. The show continues to be modest in decision in contrast with a smartphone, however its capabilities lengthen past exhibiting static photographs. It can play video, show images, run a calculator, and performance as a compass. Users also can obtain photographs over Bluetooth, work together by voice instructions, and rotate the show or regulate its brightness routinely. The sleeve incorporates further fibers that carry a microphone, a speaker, and sensors for motion, temperature, magnetic orientation, and ambient gentle. A temperature-sensing fiber positioned underneath the arm, for instance, can measure physique temperature and show the studying on the sleeve itself. Each pixel fiber additionally has its personal management channel, which means a fault in a single line doesn’t essentially interrupt the others. The system can register a number of touches concurrently, bringing it nearer to the interactive conduct of a standard touchscreen.



According to the researchers, the prototype retained practically unchanged gentle output and contact response after 50 machine-washing cycles with detergent and 1,000 bends round a radius of 5 millimeters. The built-in show can also be reported to be as breathable as cotton, polyester, and denim, whereas remaining inside established skin-contact security limits.





towards clothes that senses and responds



Healthcare is one potential software recognized by the group. Fibers outfitted with physiological sensors might gather data constantly and current it instantly on a garment, permitting wearers to entry measurements with out consulting a separate machine. Combined with synthetic intelligence, the researchers counsel, such methods might ultimately help customized monitoring and suggestions. That risk stays a future course moderately than a demonstrated functionality of the present prototype. The group’s subsequent steps embody enhancing decision, integrating extra sensing features, and exploring on-device AI. The broader implication is a shift in how digital interfaces are designed. Smartphones and computer systems have accustomed us to accessing data by devoted screens, whereas wearable know-how has largely miniaturized current units or hooked up them to the physique. The NUS analysis proposes a unique relationship between electronics and on a regular basis objects, one by which data could be displayed on the fabric already in touch with the wearer.





mission data:



analysis group: Tural Khudiyev, Heng Fu, Ziang Li, and Swetika Chaturvedi
establishment:College of Design and Engineering, National University of Singapore (NUS)
lead researcher: Asst Prof. Tural Khudiyev, Department of Materials Science and Engineering
