Electromechanical TV Goes 3D With This Gentle-field Show

A mechanical TV — the sort that makes a picture with a Nipkow disk and a single lamp with some assist from persistence of imaginative and prescient — is simple sufficient to wrap your head round. Moving that approach into the third dimension, although? That’s a little bit of a head scratcher. Luckily for us [AncientJames] provides a simple visual explanation for a way the magic occurs.

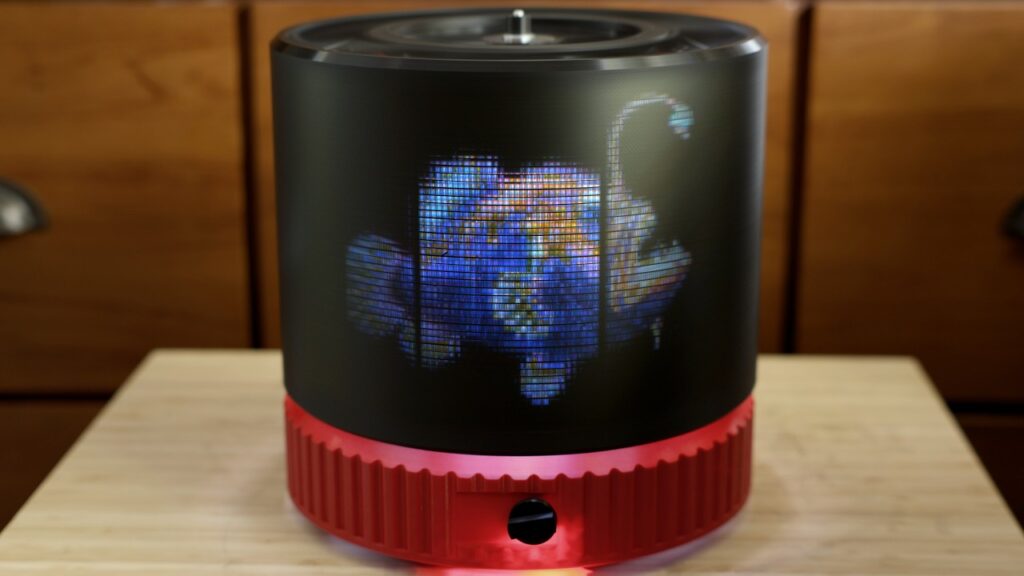

Instead of a disk doing a raster scan of the show, he’s utilizing a rapidly-spinning drum with holes in it. In place of a single lamp, he’s bought an array of LED matrix shows, every 32 pixels by 64 pixels in decision. The trick is splitting the mannequin up into a light-weight discipline, so every gap tasks its personal picture of the article on the correct angle.

In this demo there are three matrix shows, although that does restrict the viewing angle as they’re organized as one half of a hexagonal prism — you’d want extra screens to get a full 360. The efficient decision by the drum is simply about 100 pixels by 48 pixels per eye, however that’s nonetheless sufficient to play DOOM with.

This isn’t the primary time this explicit [Ancient] has bought DOOM going on a volumetric display, and primarily based on previous results, it probably won’t be the last time either. This implementation, which retains the shows stationary and doesn’t require a dear laser projector, seems to be essentially the most accessible to us, so long as you watch your fingers.
