Designing A Fully 3D-Printed Mechanical Calculator
Even if nearly tragically impractical in a planet the place digital calculators are low-cost as chips, mechanical calculators and their large mechanical laptop brethren stay an absolute marvel of engineering. Using nothing however components like easy gears their movement is used to calculate every thing from a easy multiplication to the correct focusing on directions for an Iowa-class battleship’s weapons.

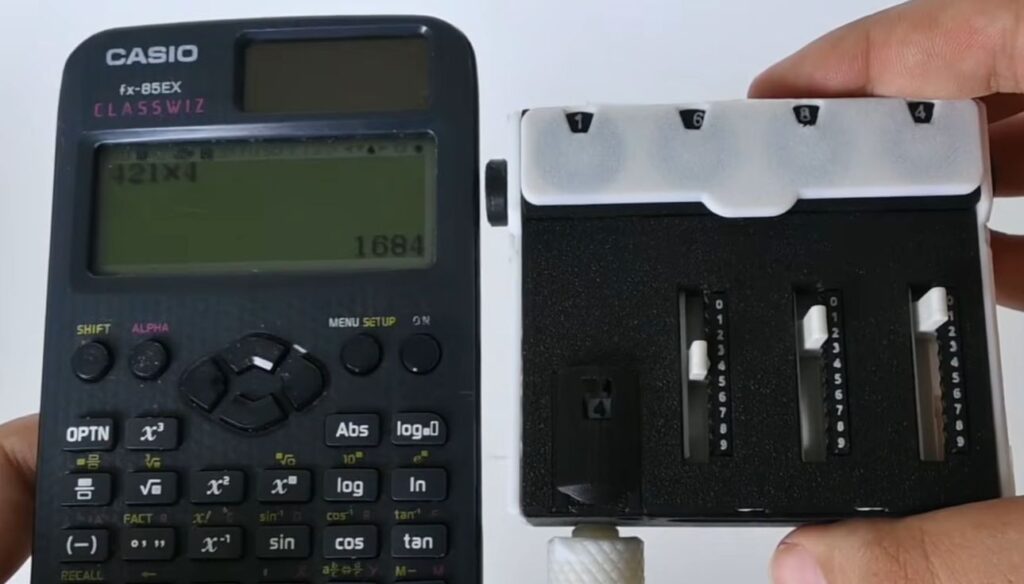

This fascination, together with the mind-bendingly excessive costs for industrial digital calculators led [3D all Workshop] to spend 2 months on designing his own mechanical calculator. Fully FDM 3D-printed, after all.
In the video the design course of and troubleshooting step are coated together with the workings of the mechanisms for each addition and multiplication. While this will appear easy, mainly changing numbers of rotations right into a remaining indicator place, facets like carrying a digit and including a multiplication characteristic to the mechanism require some correct engineering.
Of course, utilizing FDM printing for tolerance-sensitive issues like gears meant that plenty of time was spent redesigning facets of the mechanism, going via a couple of hundred design iterations till it labored, with the assistance from a little bit of lubrication.
Naturally this isn’t the primary 3D-printed mechanical calculator, to not point out ones made from wood, however all the time it’s fairly cool to see one constituted of first fundamentals.
