Constructing A Microscope With A 3D View

As digital elements develop ever smaller, a microscope has turn out to be an more and more indispensable device for any advantageous work; when inspecting electronics, although, particularly solder joints, [Corebb] discovered a top-down view too limiting, so he constructed his own microscope with a rotating side-angle view.

The microscope itself is fabricated from a industrial C-mount microscope lens meeting and a USB digicam; the lens has a variable magnification issue as much as 200x, which is loads for electronics work, and is mounted on an adjustable stand to maneuver the point of interest. This is paired with an LED ring for illumination and two polarizing filters, one mounted on the lens and one one the lighting ring; when adjusted to 90 levels from one another, these remove glare from reflective surfaces.

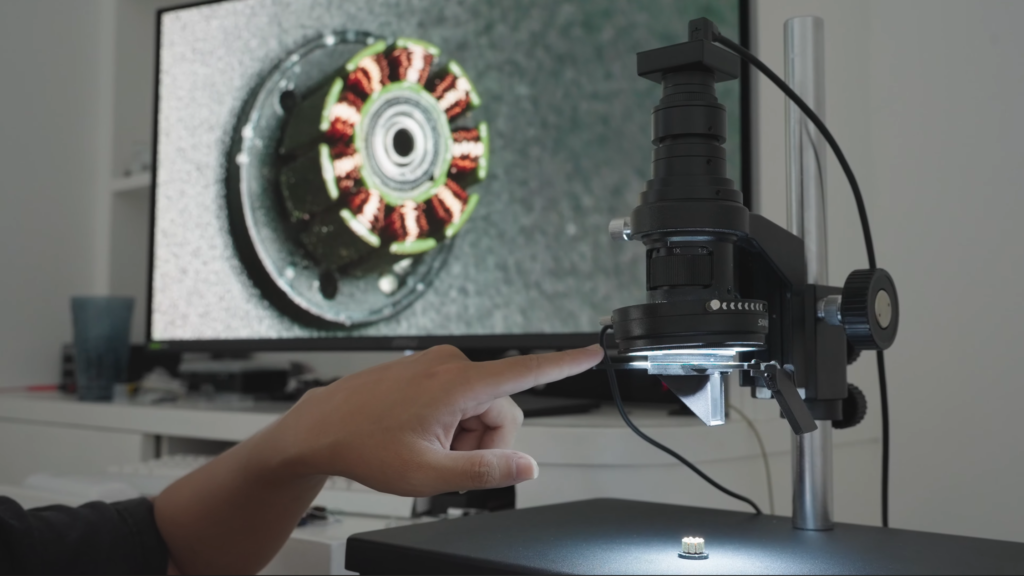

To view topics from the aspect, [Corebb] constructed a snap-on adapter. This makes use of a pair of mirrors to seize a view from the aspect of the thing and direct this by way of the primary microscope lens. An further concave lens compensates for the elevated size of the optical path, and ball bearings let the entire adapter rotate across the microscope and seize the topic from any angle. [Corebb] tried 3D-printing the adapter, however discovered that flexing prompted an excessive amount of jitter; along with being sturdier, a machined aluminium half diminished shadows by permitting for thinner helps. The adapter snaps onto the microscope with small magnets, which hold the optical path constantly aligned.

This isn’t the primary time we’ve seen a soldering microscope with a view from the side, however this does look rather more inexpensive. If you’d wish to attempt the polarized mild supply along with your microscope, we’ve covered that before.
