7 historical audio and video ports which can be nonetheless helpful at present
HDMI, DisplayPort, and USB-C are the preferred ports at present, however they don’t seem to be the one ports in use. In truth, when you check out the preferred ports at present throughout all electronics, you will discover {that a} shocking variety of them have been round for a very very long time.
These are 7 ports which have hung round as a result of they’re nice at what they do.
The 1/4-inch jack
A Nineteenth-century phone switchboard plug
The 1/4 inch connector first entered widespread use within the 1870s in early phone exchanges.
Today, you will nonetheless discover it in use on guitars, audio system, and a spread of different skilled audio units.
It, like a lot of the different ports on this listing, has remained in use as a result of this can be very sensible. It is rugged sufficient to outlive getting dropped, stepped on, yanked out unintentionally, and may deal with high-voltage—like from an amp to a speaker—and line-level indicators—like out of a guitar—with no downside. It is cheap, straightforward to fabricate, and you’ll usually restore them within the discipline if one breaks.
There are actually solely two trade-offs, and so they’re fairly minor. The first is dimension: they’re fairly cumbersome in comparison with USB-C and different fashionable ports.
The second is a little bit of confusion that crops up between the stereo and balanced variations, which use the identical bodily connector.
The 3.5mm headphone jack
Phones may lack them, however every thing else loves them
The 3.5mm port, which was ubiquitous on telephones for almost a decade and stays a mainstay of different client electronics, is principally the little sibling of the 1/4 jack.
It provides no latency, does not require that you simply open up your settings to pair a tool, and does not require batteries.
It can also be “high-fidelity,” in that it does not degrade an audio signal in the way lossy Bluetooth connections do.

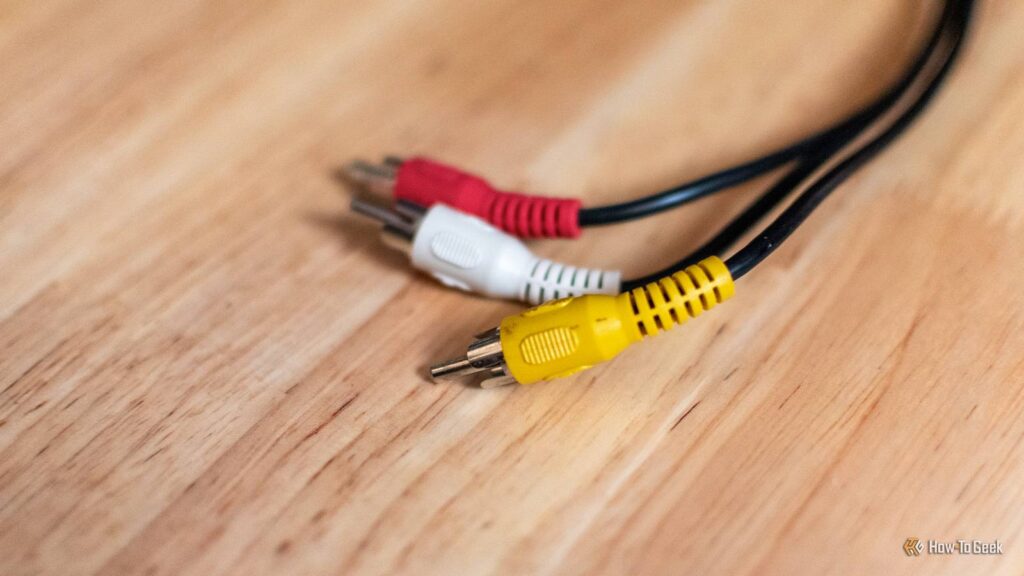

RCA ports
The final instance of “if it ain’t broke…”
RCA connectors, which I usually heard known as “these yellow, crimson, and white connectors you used to see on previous TVs,” are one other previous port.
They had been first launched within the Thirties for house phonographs, and so they’ve caught round ever since.
They was once the go-to connector for TVs, VCRs, DVD gamers, vinyl turntables, and even some audio system, however they have been changed in lots of these roles by HDMI ports.
Today, they’re nonetheless generally discovered on mixers, subwoofers, receivers (for line-level outputs), and different audio tools.
They’re easy, low cost, and virtually indestructible.
XLR port
A 3-pin connector from the Nineteen Fifties remains to be regular
XLR is an audio cable that has three pins and a small latch to carry it in place.
Those further pins permit XLR to hold balanced audio, which is crucial for transmitting clear audio over lengthy distances in noisy environments. The latch ensures that your cable stays linked because it ought to.
The XLR port additionally helps 48V Phantom Power, which lets you join a condenser microphone with out including a battery or energy provide to your setup.
You’ll additionally discover some XLR cables which can be particularly designed for DMX lighting management, which is digital. The cables are barely totally different, so attempt to keep away from mixing them with XLR audio cables.
TOSLINK optical (S/PDIF)
Fiber-optic connections nonetheless exist on soundbars, TVs, and AVRs
-
-
Credit: Cory Gunther / How-To Geek
TOSLINK is a plastic fiber-optic cable designed to hold digital audio indicators. It is definitely recognized on the again of televisions and receivers resulting from its trapezoid form and distinct smooth crimson glow.
Its largest benefit over different audio transmission cables is electrical isolation. An audio sign despatched alongside a TOSLINK cable exists purely as mild, which eliminates quite a lot of the potential for interference that exists with analog or digital audio cables.
Of course, TOSLINK does not assist high-end audio codecs like Dolby Atmos or TrueHD, which makes it suboptimal to be used in hi-fi house theater methods.
The 5-pin DIN MIDI port
Countless music units nonetheless include one
MIDI is a protocol designed to attach musical devices. It makes use of a 5-pin DIN plug.
Unlike USB connections, MIDI does not require drivers and even a pc, which makes it much less susceptible to failure than extra difficult setups.
MIDI cables are unidirectional, which implies you want separate in, out, and thru cables relying in your particular setup.
VGA
An historical analog video port remains to be round at present
VGA was the usual for PC screens for many years, although most fashionable desktops and laptops have changed it with a mixture of HDMI, DisplayPort, and USB-C.
VGA is analog and does not carry audio, however it does have its perks. For one, it does not have HDCP, which implies you are not going to attach a VGA cable solely to be advised that your cable is one way or the other “outdated” as a result of it does not assist the identical copy-protection protocols.
Today, VGA remains to be seen on quite a lot of projectors as a result of it’s bodily strong, dependable, and not susceptible to bizarre quirks. If it’s worthwhile to plug in 100 totally different units for shows, VGA usually comes with the fewest potential problems.
Old ports are nonetheless in use as a result of they’re nice at what they do
Most of those ports are a number of many years previous, and a few are greater than a century previous. For essentially the most half, they’ve caught round as a result of they’re so good at what they try this there is not a lot level in changing them. Even VGA, which appears particularly outdated in comparison with HDMI or DisplayPort, theoretically helps as much as 1440p at 75Hz.
Their longevity additionally invitations an fascinating query: which fashionable ports at present will nonetheless be round in 20 years, and even 150 years? I can simply think about the 1/4 inch jack or RCA ports sticking round for the foreseeable future. I’m considerably much less positive about DisplayPort, HDMI, and even USB-C.
